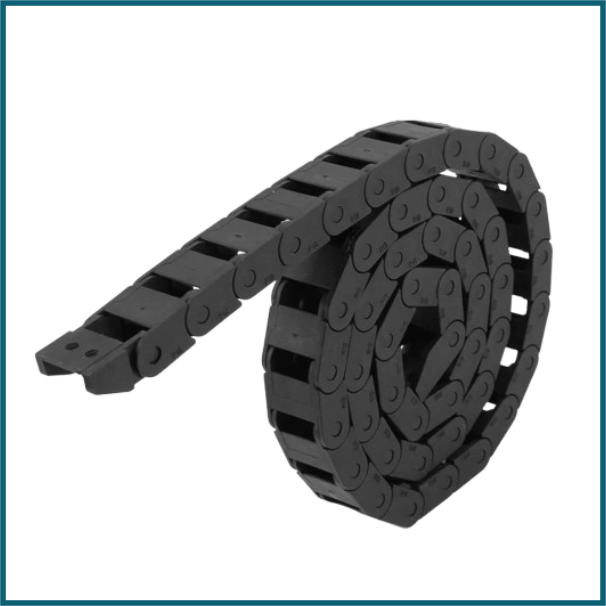

Nylon plastic tank chain 10*15
SKU: 3DP-0096-P01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Nylon Plastic Tank Chain 10×15 is a flexible cable management system that guides and protects cables, hoses, and pneumatic tubing in moving machinery and automation equipment.
The drag chain, made of high-strength technical nylon, reduces cable wear, eliminates tangling, and protects against excessive bending and mechanical damage when in continuous movement.
This drag chain has a greater interior chamber size (10mm × 15mm) than the 10×10 variant, making it appropriate for transporting more cables or larger diameter wiring and tubing in small installations.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Cable Drag Chain.
Internal Dimensions: 10 × 15 mm.
External Dimensions: 15 × 25 mm.
Material: Reinforced Nylon (PA66).
Bend Radius: 18–28 mm.
Chain Type: Openable / Snap-open.
Operating Temperature: -30°C to +80°C.
Mounting Type: Fixed End Brackets.
Length: sold per metre.
Typical Applications:
3D printers
CNC routers
Laser engraving machines
Robotics projects
Pick-and-place machines
Industrial automation equipment
Sliding and moving assemblies
Pneumatic tubing management
Sensor and motor cable routing
