Manual operation knob Control module
SKU: 3DP-0137-P01
Sold by Select Automation
Final price R 51.04
R 44.38 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

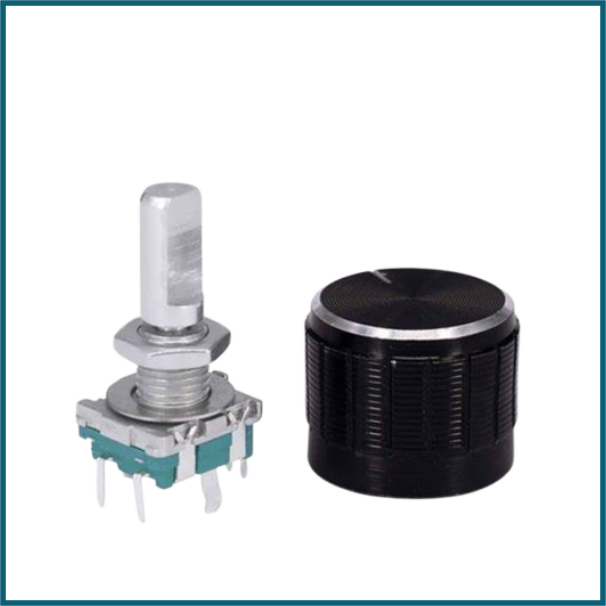

A small rotary encoder module designed to provide precise rotational input to microcontrollers, HMIs, embedded systems, and electrical equipment.
The encoder creates digital pulses as the shaft rotates, allowing a controller to determine both the direction and amount of rotation.
Many variants additionally contain an integrated push-button mechanism that can be engaged by pressing the shaft.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Incremental Rotary Encoder.
Encoder Type: Mechanical incremental encoder.
Output Signals: Channel A and Channel B quadrature outputs.
Switch Function: Integrated push-button switch.
Rotation: Continuous 360° rotation.
Operating Voltage: 3.3V to 5V logic compatible.
Mounting Type: PCB through-hole mounting.
Shaft Type: D-shaft.
Body Material: Metal housing with PCB base.
Features:
Detects clockwise and counterclockwise rotation.
Provides precise menu and parameter adjustment.
Includes integrated push-button functionality.
Compact design for embedded applications.
Long mechanical life and reliable operation.
Typical Applications:
LCD menu navigation
Volume controls
Frequency and speed adjustment
CNC controllers
3D printer interfaces
Laboratory equipment
Industrial HMI panels
Arduino and Raspberry Pi projects
