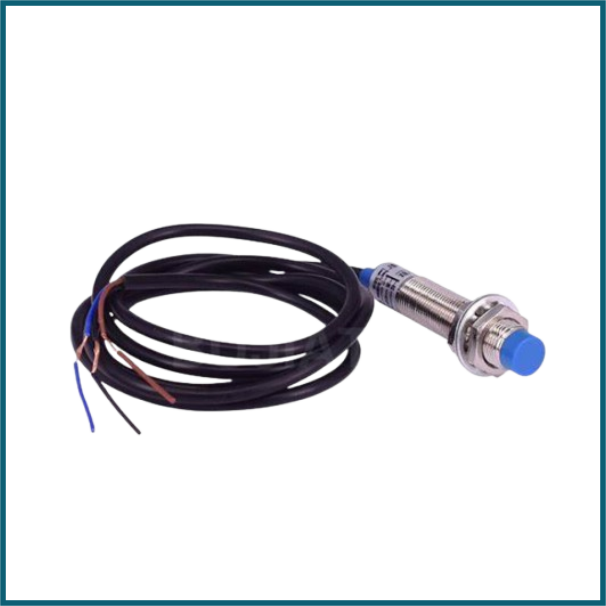

NPN LJ12A3-4-ZBX Inductive switch
SKU: 3DP-0139-P01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NPN LJ12A3-4 Z/BX is a tiny M12 inductive proximity sensor with a 4 mm sensing distance.
It operates on 6-36 V DC and outputs an NPN Normally Open (NO) signal.
It is often used in CNC machines, 3D printers, and automation systems to identify metal accurately.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: LJ12A3 4 Z/BX.
Type: Inductive proximity sensor (detects metallic objects only).
Housing Size: M12 threaded cylindrical body (12 mm diameter).
Detection Distance: 4 mm (flush mounted).
Operating Voltage: 6–36 V DC.
Output Type: NPN, Normally Open (NO).
Output Current Capacity: ~200 mA.
Switching Frequency: Up to 500 Hz (fast response).
Indicators: LED status indicator for detection state.
Cable Length: ~1 m standard (PVC insulated).
Protection Features: Reverse polarity and short circuit protection.
IP Rating: IP67 (dust and water resistant).
Operating Temperature: –25 °C to +75 °C.
