MK10 Extruder Kit 1.75MM/0.5 nozzels
SKU: 3DP-0142-P01
Sold by Select Automation
Final price R 73.85
R 64.22 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The MK10 Extruder Kit is a Bowden-style extrusion system suitable for Creality CR-series and other RepRap printers.

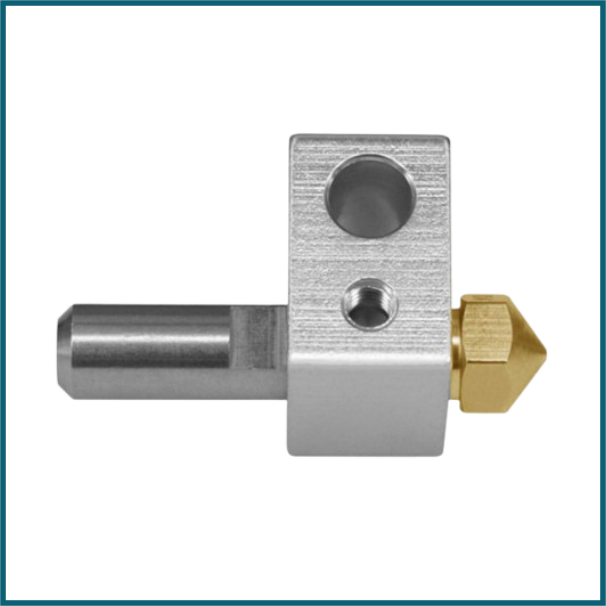

The kit contains an extruder body, PTFE-lined hot end, aluminium heating block, and 0.5mm brass nozzle.
The 0.5mm nozzle has a larger flow rate than the regular 0.4mm, allowing for faster prints and stronger layer adhesion while keeping good resolution.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Filament Size: 1.75 mm.
Nozzle Size: 0.5 mm brass nozzle (M7 thread) → slightly larger than the standard 0.4 mm, allowing faster extrusion.
Extruder Type: Bowden.
Hot end: MK10 PTFE lined hot end with aluminium heating block.
Heating Block Dimensions: 20 × 20 × 10 mm.
Throat Tube: 30 × 5 mm with PTFE liner for smooth filament guidance.
Thermocouple Thread: M4.
Working Temperature: Up to 240–250 °C.
Motor Compatibility: Standard NEMA17 stepper motors.
Weight: 90–100 g.
Performance: Reliable extrusion, smooth filament feeding, higher flow rate with 0.5 mm nozzle.
