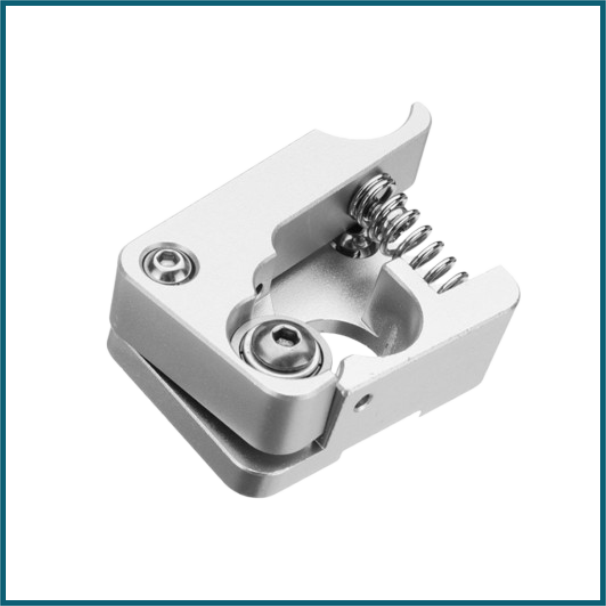

MK10 Remote short-range Extruder 1.75mm Left
SKU: 3DP-0146-P01
Sold by Select Automation
Final price R 238.91
R 207.75 excl. VAT
Availability: In Stock (7 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The MK10 Remote Short-Range Extruder is a Bowden-style extrusion system that uses 1.75mm filament.
The "short-range" design minimizes filament path length, enhancing control and reliability, particularly for flexible filaments.
Left-hand orientation relates to the mounting direction, making it appropriate for printers with mirrored extrusion setups.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Filament Size: 1.75 mm.
Orientation: Left hand version → designed for mirrored mounting setups.
Extruder Type: Remote Bowden extruder with short filament path for improved control.
Hot end Compatibility: MK10 PTFE lined hot end with aluminium heating block.
Nozzle Compatibility: Standard MK10 brass nozzles.
Heating Block Dimensions: 20 × 20 × 10 mm.
Throat Tube: 30 × 5 mm with PTFE liner for smooth filament guidance.
Thermocouple Thread: M4.
Working Temperature: Up to 240–250 °C.
Motor Compatibility: Standard NEMA17 stepper motors.
Weight: 90–100 g.
Performance: Smooth filament feeding, improved handling of flexible filaments due to shorter path.
