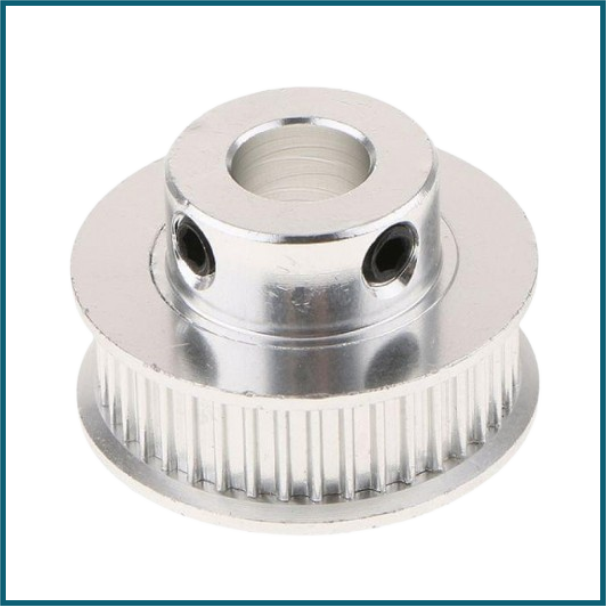

GT2 Timing Pulley 40 Tooth Wheel Aluminum Gear 8mm
SKU: 3DP-0188-P01
Sold by Select Automation
Final price R 47.46
R 41.27 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The GT2 40-tooth timing pulley is a big aluminium gear designed for GT2 belts (2mm pitch, 6-10mm width).
The 8-mm bore allows for heavy-duty motor shafts such those on NEMA 23 stepper motors, making it suitable for CNC machines, large-format 3D printers, and industrial automation systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: GT2 timing pulley.
Material: Aluminium alloy.
Teeth: 40.
Pitch: 2 mm.
Bore Diameter: 8 mm.
Belt Compatibility: GT2 timing belts.
Outer Diameter: 25.5 mm.
Fixing Method: Dual grub screws for secure shaft attachment.
Features:
High precision tooth profile minimizes backlash.
Smooth, quiet operation.
Larger tooth count → faster belt travel per rotation, lower torque.
Suitable for heavy duty belt driven systems.
