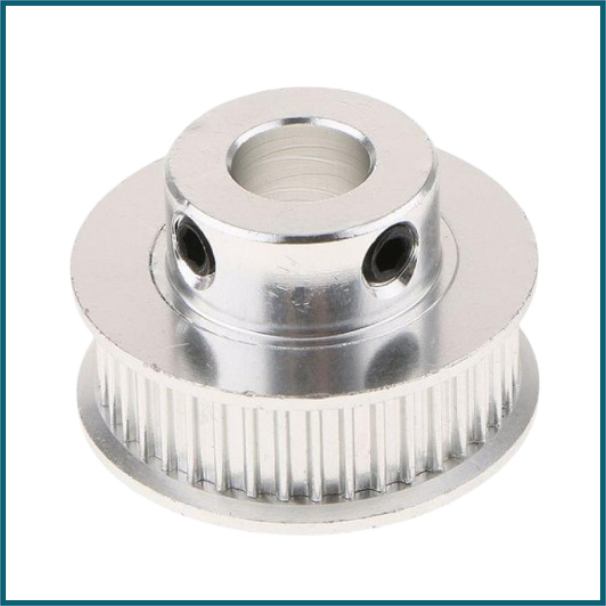

GT2 Timing Pulley 40 Tooth Wheel Aluminum Gear Bore 6mm
SKU: 3DP-0189-P01
Sold by Select Automation
Final price R 51.04
R 44.38 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The GT2 40-tooth timing pulley is a precision aluminium gear made for GT2 belts (2 mm pitch, usually 6 mm wide).
The 6mm bore accommodates larger motor shafts than the normal 5mm bore, making it ideal for NEMA 23 stepper motors and other heavy-duty applications.
The 40-tooth design offers faster belt travel per rotation (~80mm) and smoother motion, but reduces torque compared to smaller pulleys.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: GT2 timing pulley.
Material: Aluminium alloy.
Teeth: 40.
Pitch: 2 mm.
Bore Diameter: 6 mm.
Belt Compatibility: GT2 timing belts.
Outer Diameter: 25.5 mm.
Fixing Method: Dual grub screws for secure shaft attachment.
Features:
High precision tooth profile minimizes backlash.
Smooth, quiet operation.
Larger tooth count → faster belt travel per rotation, lower torque.
Suitable for heavy duty belt driven systems.
