GT2 Timing Pulley 40 Tooth Wheel Aluminum Gear Bore 5mm
SKU: 3DP-0190-P01
Sold by Select Automation
Final price R 51.04
R 44.38 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

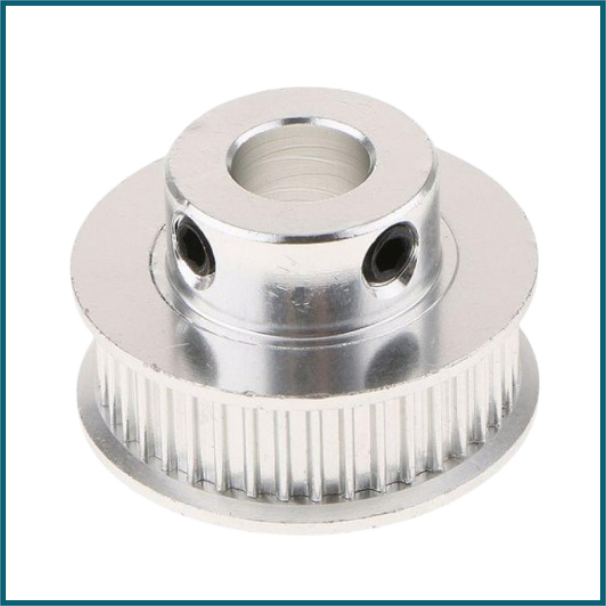

The GT2 40-tooth timing pulley is a precision aluminium gear made for GT2 belts (2 mm pitch, usually 6 mm wide).
The 5mm bore is compatible with NEMA 17 stepper motor shafts, making it an ideal choice for 3D printers, CNC machines, and robotics projects.
The 40-tooth design allows for faster belt travel per rotation (~80mm) and smoother motion than smaller pulleys, but reduces torque.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: GT2 timing pulley.
Material: Aluminium alloy.
Teeth: 40.
Pitch: 2 mm.
Bore Diameter: 5 mm.
Belt Compatibility: 6 mm GT2 timing belt.
Outer Diameter: 25.5 mm.
Width: 17 mm.
Weight: 22 g.
Fixing Method: 2 grub screws for secure shaft attachment.
Features:
Rounded GT2 tooth profile for low backlash.
Smooth, quiet operation.
Larger tooth count → faster travel, lower torque.
