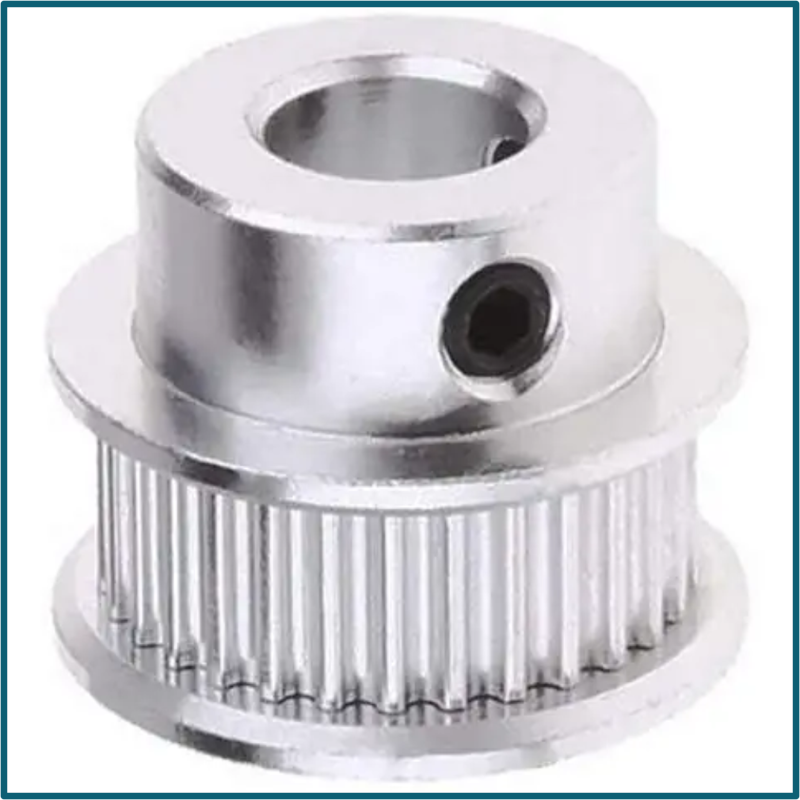

GT2 Timing Pulley 30 Tooth Wheel Aluminum Gear Bore 8mm (21mm)
SKU: 3DP-0191-P01
Sold by Select Automation
Final price R 46.69
R 40.60 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The GT2 30 tooth timing pulley with 8mm bore is a heavy-duty aluminium gear designed for use with GT2 belts (2mm pitch, usually 6-10mm broad).
The 8 mm bore is compatible with larger motor shafts, like those on NEMA 23 stepper motors, and the 21 mm width accommodates wider belts for higher load capacity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: GT2 timing pulley.
Material: Aluminium alloy.
Teeth: 30.
Pitch: 2 mm.
Bore Diameter: 8 mm.
Pulley Width: 21 mm.
Belt Compatibility: GT2 timing belts.
Outer Diameter: 19.1 mm.
Fixing Method: Dual grub screws for secure shaft attachment.
Features:
High precision tooth profile minimizes backlash.
Smooth, quiet operation.
Larger bore and width → stronger grip, higher load handling.
Ideal for heavy duty belt driven systems.
