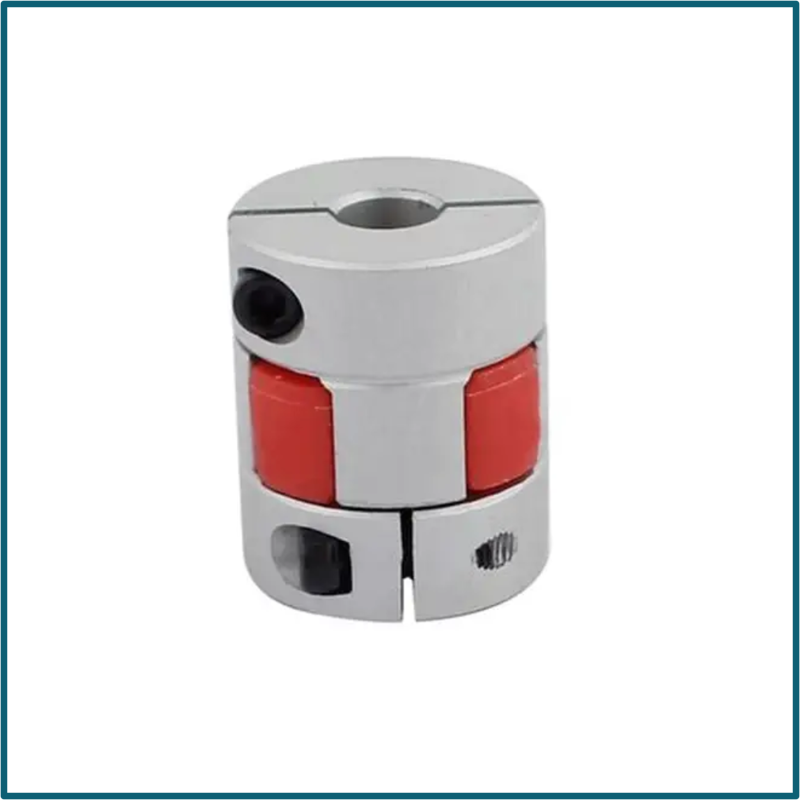

Large torque aluminum alloy star type plum coupling spring coupling three jaw servo motor coupling (20x30 6.35*6.35)
SKU: 3DP-0206-P01
Sold by Select Automation
Final price R 124.89
R 108.60 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A large-torque aluminium alloy star-type plum coupling (spring coupling, three-jaw servo motor coupling, size 20×30, bore 6.35×6.35) is a precision shaft connector for servo motors, CNC machines, and automation systems.
The three-jaw aluminium body with a polyurethane elastomer insert (plum-shaped spider) efficiently transmits torque, absorbs vibration, and compensates for slight misalignments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: Aluminium alloy body with polyurethane elastomer spider insert.
Outer Diameter (OD): 20 mm.
Length (L): 30 mm.
Bore Sizes: 6.35 mm × 6.35 mm (¼ inch dual shaft connection).
Design: Star type / plum coupling with three jaws and elastomer insert.
Torque Capacity: 2.5–4.5 N·m.
