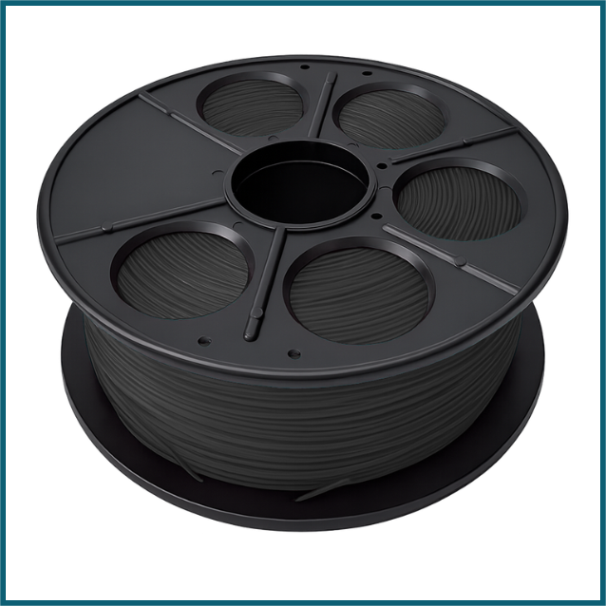

PAHT-CF Filament 1.75mm Natural 1kg/Roll
SKU: 3DP-0234-DS1
Sold by Select Automation
Final price R 1,391.74
R 1,210.21 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The PAHT-CF Filament 1.75mm Natural 1kg/Roll is a high-performance 3D printing material intended for applications that require outstanding strength and durability.
This filament, created by eSUN and LUVOCOM, is based on PA6 (Polyamide 6) and reinforced with 15% high-rigidity carbon fibre.
This filament is ideal for making strong, durable objects that can tolerate high temperatures and mechanical stress.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: PA6 with 15% high-rigidity carbon fiber.
Filament Diameter: 1.75mm.
Colour: Natural.
Weight: 1kg per roll.
Density: 1.06 g/cm³.
Glass Transition Temperature: 70°C.
Vicat Softening Point: 220°C.
Melt Flow Index: 14.4 ± 2.0 g/10min (280°C).
Tensile Strength (X-Y): 88 ± 7 MPa.
Tensile Strength (Z): 64 ± 3 MPa.
Elongation at Break (X-Y): 10.4 ± 0.7%.
Elongation at Break (Z): 5.2 ± 0.5%.
Impact Strength (X-Y): 57.5 ± 3.4 kJ/m².
Impact Strength (Z): 13.3 ± 0.8 kJ/m².
Continuous Use Temperature: Up to 150°C.
Short-Term Use Temperature: Up to 180°C.
Surface Resistance: < 102Ω.
Applications: Prototyping, functional parts, machinery, automotive parts, aerospace, textiles, and more.
