GT2 BELT 6MM 140
SKU: 3DP-0327-DS1
Sold by Select Automation
Final price R 32.07
R 27.89 excl. VAT
Availability: In Stock (11 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

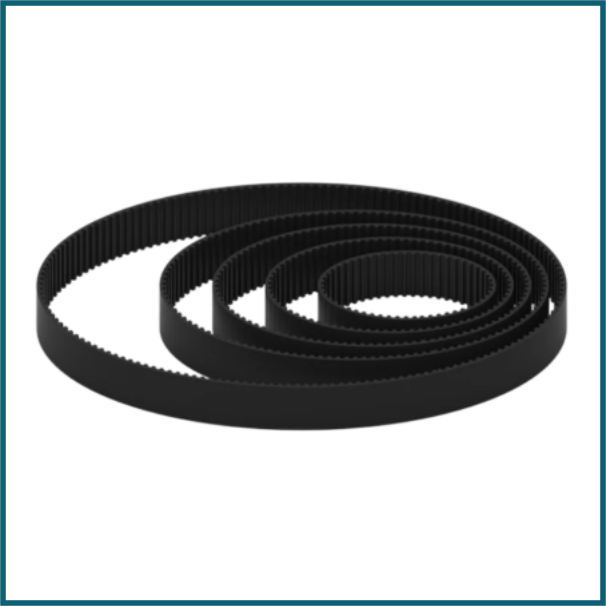

The GT2 140mm closed-loop timing belt (6mm wide) is one of the shortest variants in the GT2 family, ideal for compact mechanical systems. Its rounded tooth profile minimizes slippage and backlash, making it perfect for short-path applications such as Z-axis lifts, small gantry systems, or robotics joints. Despite its small size, the fiberglass-reinforced neoprene construction provides strength and durability under continuous use.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Type: GT2 closed-loop timing belt
Length: 140mm
Width: 6mm
Pitch: 2mm (distance between teeth)
Number of Teeth: 70
Tooth Profile: Rounded (optimized for GT2 pulleys, reduces backlash)
Material: Neoprene rubber with fiberglass reinforcement
Tooth Height: ~0.75mm
Profile Height: ~1.38mm
Color: Black
Applications:Compact 3D printers (short axis or Z-axis motion systems)CNC machines with limited travel distancesLaser cutters with small framesRobotics and automation systems requiring very short closed-loop belts
