ENDER 3 S1 THERMISTOR AND HEATING CARTERAGE
SKU: 3DP-0346-DS1
Sold by Select Automation
Final price R 57.56
R 50.05 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

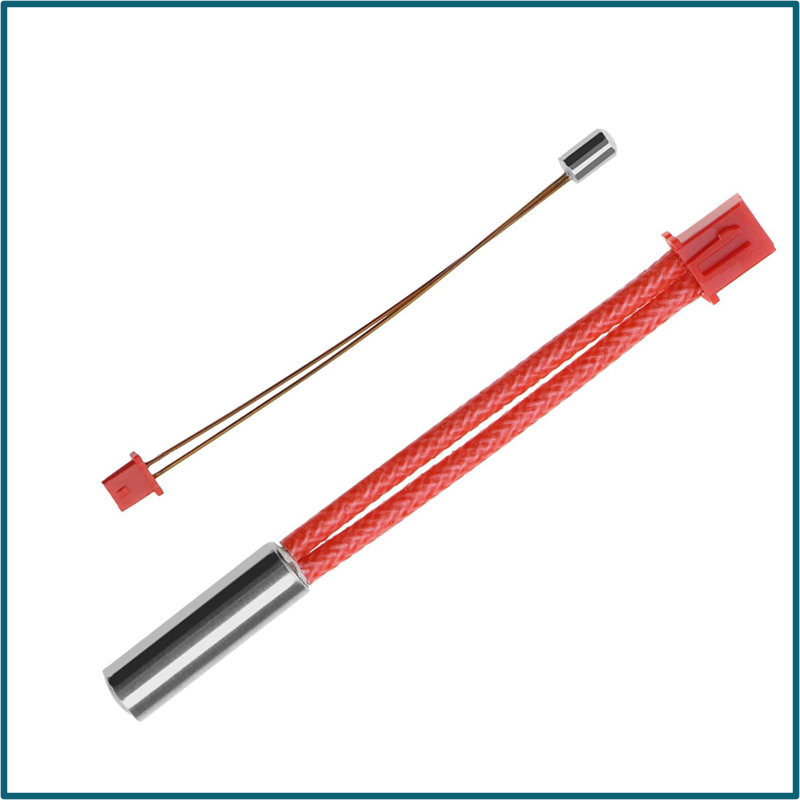

The Ender 3 S1 hot end is built around two important components: the heating cartridge (which generates heat) and the thermistor (which measures and regulates temperature).
Together, they maintain consistent extrusion and keep the printer from overheating.
Buy currently uses Select Automation shop pricing and checkout.
Heating Cartridge:
Voltage: 24V DC.
Power: 40W.
Tube Size: ~6 mm diameter × ~20 mm length.
Wire Length: 1–2 m high temperature insulated leads.
Material: Stainless steel tube with ceramic insulation core.
Temperature Range: Up to ~300 °C.
Function: Provides rapid, consistent heating to the hot end block.
Thermistor:
Type: 100K NTC thermistor.
Temperature Range: Up to ~300 °C.
Compatibility: Ender 3 S1, S1 Pro, S1 Plus hot ends.
Installation: Fits into the hot end block, secured with a small screw.
Function: Monitors hot end temperature and sends feedback to the printer’s control board for precise regulation.
