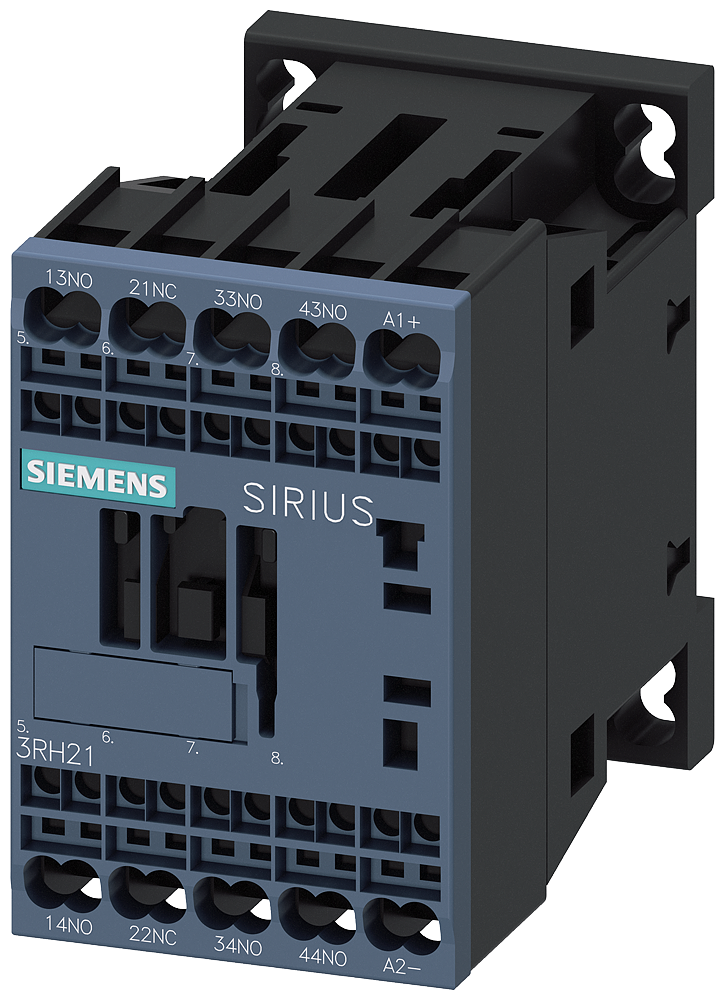

Contactor relay railway, 3 NO + 1 NC, 24-34 V DC, 0.7-1.25*Us, 3RH2131-2XB40-0LA2

Contactor relay for railway 3 NO + 1 NC DC 24-34V, 0,7...1,25*US, with integrated varistor Size S00, Spring-type terminal suitable for PLC outputs Contactor relay for railway applications SIRIUS 3RH2 for switching the control signals with large control voltage fluctuations under extreme conditions, e.g. for railway applications. The SIRIUS 3RH2 contactor relays have standard-compliant terminal designations and a reliable and time-saving connection technology. Thanks to the multiplication of outputs, simultaneous switching of several auxiliary circuits is possible. All contacts are available with positively driven operation for safety applications as well as SUVA versions. The contactor relays are climate-resistant, have a high contact reliability and are suitable for use worldwide thanks to the corresponding approvals (e.g. IEC and UL/CSA). This version is characterized by an extended operating and temperature range for tougher ambient conditions. They are available with AC or DC operation and with screw or spring-type terminals. The basic version of the contactor relays is a 4-pole design which can be extended up to 8 poles by means of snap-on auxiliary switches. The extensive range of accessories for the 3RT2 contactors in sizes S00 to S3 can also be used for the 3RH2 contactor relays. The 3RH2 contactor relays replace the well-proven 3RH1 series. Simple, efficient and always up to date - SIRIUS modular system.
