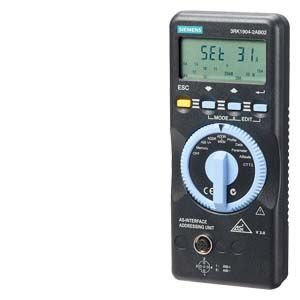

SIEMENS SIMATIC S7-300 AS-Interface addressing unit V3.0
SKU: 3RK1904-2AB02
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
AS-Interface Addressing Unit V3.0 for configuring the addresses of the AS-I slave modules.
Input/output tests and additional functionality AS-I standard V3.0 M12 connection socket with 1.5-meter addressing cable (M12 connector/hollow plug) and four 1.5-volt LR6 batteries.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: AS-Interface addressing unit.
Power supply: is provided by 4 batteries according to IEC LR6 (NEDA 15), which guarantees that the unit can perform at least 2500 device addressing. For a longer battery life, the unit is switched off automatically approx. 1 minute after the last operation.
Rated operational current: 150 Ma.
Width: 84 mm.
Height: 195 mm.
Depth: 35 mm.
Connection: via M12 socket: Pin1=AS-I+; Pin3=AS-I.
Ambient conditions:
Environmental conditions Relative humidity: max. 75 %, condensation not permitted.
Ambient temperature (during operation): 0 - 55°C.
Ambient temperature (during storage): -20 - +55°C.
Degree of protection (device): IP50.
Degree of protection (connection socket): IP20.
Conditions of application: Only indoors.
