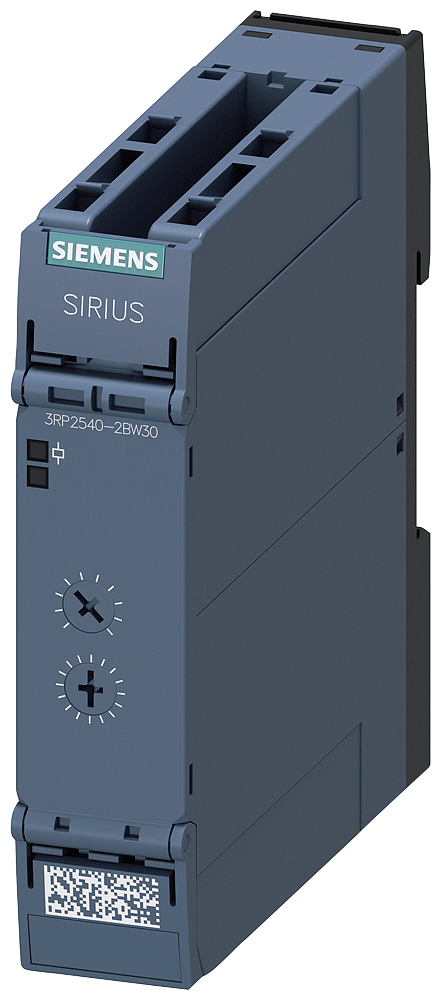

Timing relay, OFF-delay, 7 time ranges 0.05-600s, 12-240 V AC/DC at 50/60 Hz AC, 2 change-over contacts with LED
SKU: 3RP2540-2BW30
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Timing relay
Electronic OFF delay without control signal or smooth passing make contact non-volatile
7 time ranges 0.05...600 s 12-240 V AC/DC at 50/60 Hz AC
2 change-over contacts with LED
Spring-type terminal (push-in) timing relay
SIRIUS 3RP25, rückfallverzögert ohne Steuersignal, nullspannungssicher, einschaltwischend, for various switching operations involving time delays in control, starting, protection and regulation circuits
e.g. for controlling the running-on of fans.
Buy currently uses Select Automation shop pricing and checkout.
#html-body [data-pb-style=O0W8VLD]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}•Wide range of applications due to wide variety of functions within a very small space. •Can be used worldwide thanks to international approvals and wide range of voltages. •The innovative enclosure concept in an industrial design offers labeled cover caps, removable terminals and much more.•Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies.•The 3RP25 timing relays replace the well-proven 3RP15 series.•SIRIUS relays - one range for every application.
