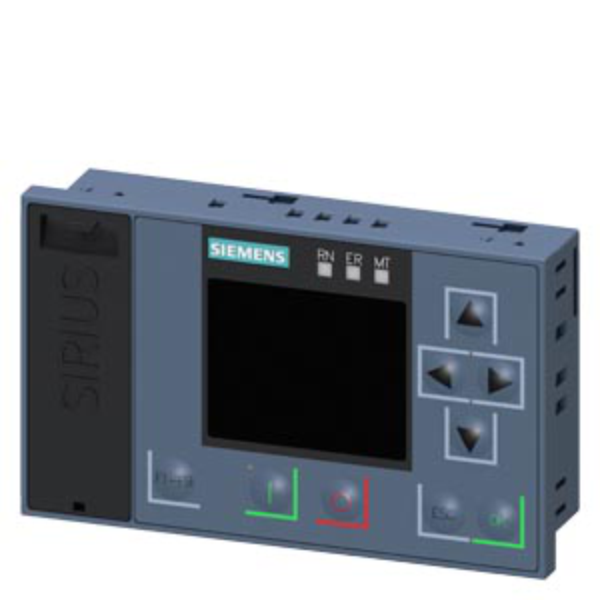

HMI Module High-Feature
SKU: 3RW5980-0HF00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 3RW5980-0HF00 is a High-Feature HMI module that provides advanced monitoring, configuration, and diagnostics capabilities for Siemens soft starters.
It enables intuitive interaction with the starter system, offering enhanced visibility into operational parameters and fault conditions—ideal for motor control centres, process automation panels, and energy-efficient installations.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Category: HMI Module for SIRIUS soft starters.
Design: High-Feature.
Mounting: Snap-on; ±90° rotatable, ±22.5° tiltable.
Dimensions (H×W×D): 68 × 111 × 32.15 mm.
Protection Class (Front): IP20; finger safe.
Operating Temp Range: –25 °C to +60 °C (derating above 40 °C).
Storage Temp Range: –40 °C to +80 °C.
Environmental Category: IEC 60721: 3K6, 3C3, 3S2, 3M6 (operation).
Compatible Soft Starters: 3RW50, 3RW51, 3RW52, 3RW55.
Weight: ~0.138 kg.
Approvals & Compliance:
CE, UKCA, UL, EAC, KC.
Hazardous Location: ATEX, IECEx.
Marine Certifications: ABS, BV, DNV, LRS, PRS.
Environmental Confirmations: Yes.
SVHC Substances: Contains lead-based compounds (RoHS-restricted).
