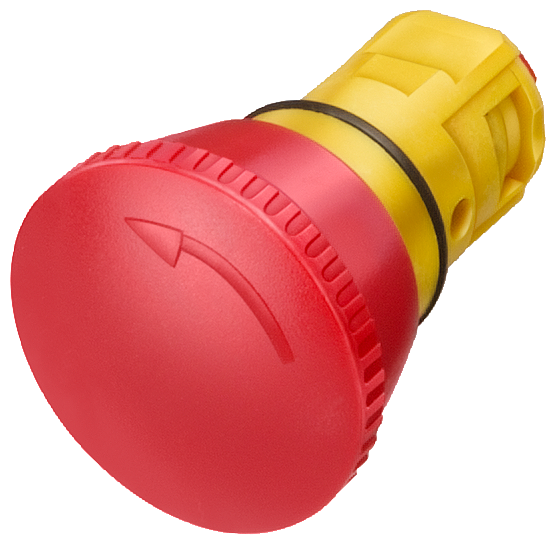

Emergency stop mushroom pushbutton, 16 mm, round plastic, red
SKU: 3SB2000-1AC01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Emergency stop mushroom pushbutton, 16 mm in diameter, round, plastic, red latching, with rotating mechanism to release latch, compliant with ISO 13850.
Product brand name: SIRIUS.
Product designation: EMERGENCY STOP mushroom pushbuttons.
Design of the product: Single device round with positive latching in accordance with ISO 13850.
Product type designation: 3SB2.
Enclosure:
Number of command points: 1.
Actuator:
Design of the actuating element: EMERGENCY STOP mushroom pushbutton.
Principle of operation of the actuating element: latching.
Product extension optional light source: No.
Color of the actuating element: Red.
Material of the actuating element: plastic.
Outer diameter of the actuating element: 28.5 mm.
Type of unlocking device: Rotate-to-unlatch mechanism.
Number of switching positions: 2.
Front ring:
Product component front ring: No.
Holder:
Material of the holder: Plastic.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Product function:
EMERGENCY OFF function: Yes.
EMERGENCY STOP function: Yes.
Protection class IP: IP65.
Vibration resistance according to IEC 60068-2-6: 20 ... 200 Hz: 5g.
Operating frequency maximum: 1 000 1/h.
Mechanical service life (operating cycles) typical: 300 000.
Reference code according to IEC 81346-2: S.
Substance Prohibitance (Date): 07/01/2006.
Weight: 0.02 kg.
Connections/ Terminals:
Tightening torque of the screws in the bracket maximum: 0.4 N·m.
Safety related data:
Proportion of dangerous failures:
With low demand rate according to SN 31920: 20 %.
With high demand rate according to SN 31920: 20 %.
B10 value with high demand rate according to SN 31920: 100 000.
Failure rate [FIT] with low demand rate according to SN 31920: 100 FIT.
IEC 61508:
T1 value for proof test interval or service life according to IEC 61508: 20 a.
Ambient conditions:
Ambient temperature:
During operation: -25 ... +70 °C.
During storage: -40 ... +80 °C.
Environmental category during operation according to IEC 60721: 3K6.
Installation/ mounting/ dimensions:
Fastening method: front plate mounting.
Shape of the installation opening: round.
Mounting diameter: 16 mm.
Mounting height: 21 mm.
Installation width: 28.5 mm.
Installation depth: 50 mm.
