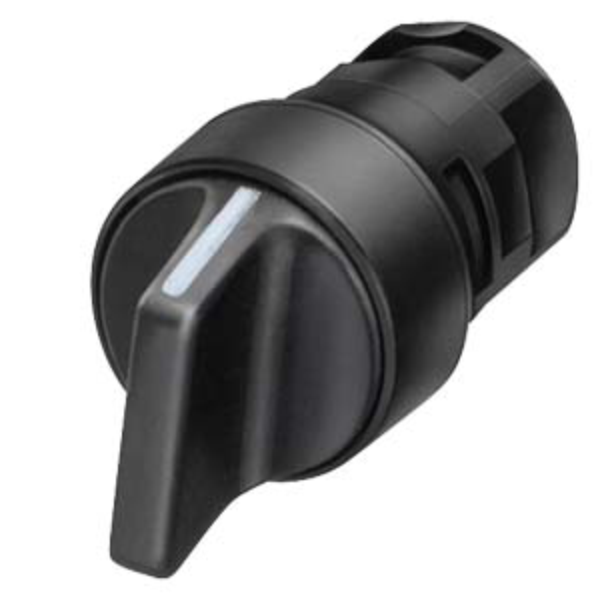

Selector switch, 16 mm, round, plastic, white, 2 switch positions O-I, latching, actuating angle 90 degree
SKU: 3SB2000-2HG01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Selector switch (16 mm round, plastic, white) with 2 switch positions O-I, latching, and 90-degree actuation angle.
Product brand name: SIRIUS.
Product designation: Selector switches.
Design of the product: Single device round.
Product type designation: 3SB2.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Product function:
EMERGENCY OFF function: No.
EMERGENCY STOP function: No.
Protection class IP: IP65.
Vibration resistance according to IEC 60068-2-6: 20 ... 200 Hz: 5g.
Operating frequency maximum: 1 000 1/h.
Mechanical service life (operating cycles) typical: 300 000.
Reference code according to IEC 81346-2: S.
Weight: 0.008 kg.
Ambient conditions:
Ambient temperature:
During operation: -25 ... +70 °C.
During storage: -40 ... +80 °C.
Environmental category during operation according to IEC 60721: 3K6.
