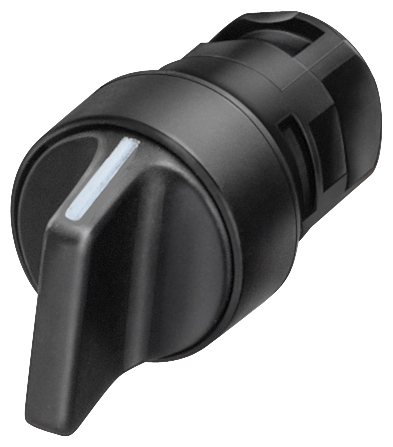

Selector, Toggle switch, 16 mm, round plastic, black
SKU: 3SB2000-2JB01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Selector switch, 16 mm, round, plastic, black, 3 switch positions I-O-II, latching, Actuating angle 2 x 90 degree.
Product brand name: SIRIUS.
Product designation: Selector switches.
Design of the product: Single device round.
Product type designation: 3SB2.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of command points: 1.
Design of the actuating element: selector switch.
Principle of operation of the actuating element: latching.
Colour of the actuating element: black.
Material of the actuating element: plastic.
Outer diameter of the actuating element: 19 mm.
Type of unlocking device: rotate-to-unlatch mechanism.
Number of switching positions: 3.
Product component front ring: Yes.
Design of the front ring: Standard.
Material of the holder: Plastic.
Protection class IP: IP65.
Operating frequency maximum: 1 000 1/h.
Tightening torque of the screws in the bracket maximum: 0.4 NM.
Fastening method: front plate mounting.
Mounting diameter: 16 mm.
Mounting height: 17 mm.
Installation width: 19 mm.
Installation depth: 50 mm.
