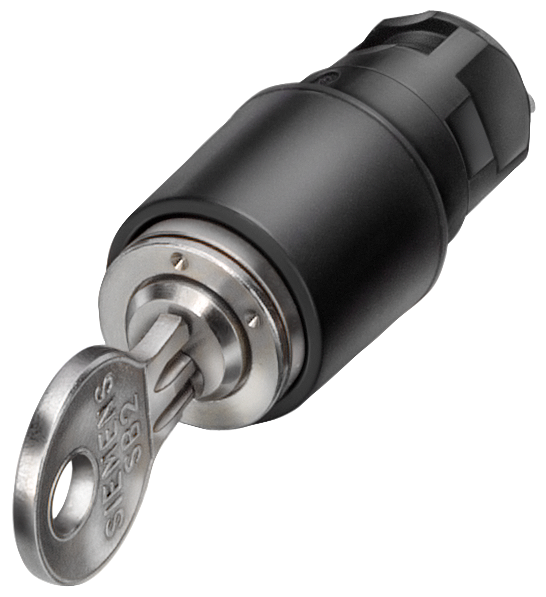

Key-operated switch CES, 16 mm, round plastic, 3SB2000-4LB01
SKU: 3SB2000-4LB01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product brand name: SIRIUS.
Product designation: Key-operated switches.
Design of the product: Single device round.
Product type designation: 3SB2.
Number of command points: 1.
Actuating angle 62 degree key removal O+I, possible special locks: SB3, SB4, SB5 Key-operated switches SIRIUS 3SB2 for meeting higher demands for access security.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Design of the actuating element: Key-operated switch.
Principle of operation of the actuating element: latching.
Material of the actuating element: plastic.
Outer diameter of the actuating element: 19 mm.
Type of unlocking device: key unlatching.
Number of switching positions: 2.
Product component front ring: Yes.
Design of the front ring: Standard.
Material of the front ring: plastic.
Colour of the front ring: black.
Material of the holder: Plastic.
Protection class IP: IP65.
Tightening torque of the screws in the bracket maximum: 0.4 NM.
Fastening method: front plate mounting.
Shape of the installation opening: round.
Mounting diameter: 16 mm.
Mounting height: 20 mm.
Installation width: 19 mm.
Installation depth: 50 mm.
