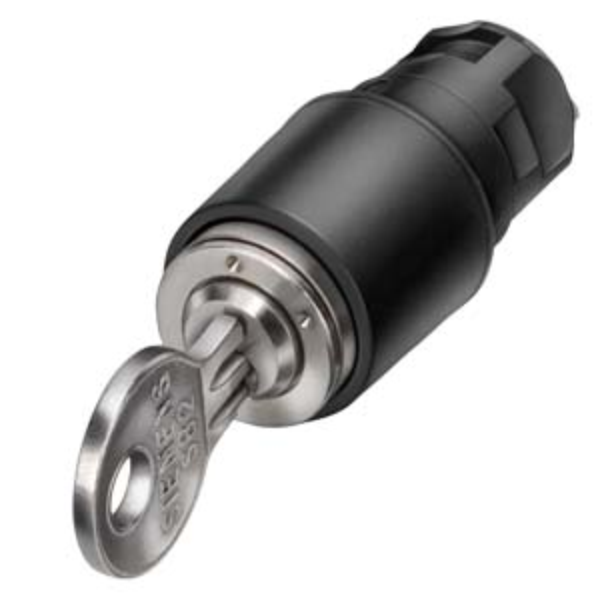

Key-operated switch, 16 mm, round, plastic, CES, SB2, 3 switch positions I-O-II, latching, Actuating angle 2 x 62 degree key removal O
SKU: 3SB2000-4PA01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Key switch, 16 mm, round, plastic.
CES, SB2, 3 switch positions I-O-II, latching.
Actuating angle 2 x 62 degrees key removal O.
Possible special locks: SB3, SB4, SB5.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Brand name: SIRIUS.
Product designation: Key-operated switches.
Design of the product: Single device round.
Product designation: 3SB2.
Number of command points: 1.
Material of holder: Plastic.
Protection class: IP65.
Actuator:
Design of the actuating element: Key-operated switch.
Principal of operation of the actuating element: Latching.
Material of the actuating element: Plastic.
Outer diameter of the actuating element: 19 mm.
Type of unlocking device: key latching.
Number of switching positions: 3.
Lock makes: CES.
Ambient Temperature:
During operation: -25 - +70°C.
During storage: -40 - +80°C.
Installation / mounting / dimensions:
Fastening method: Front plate mounting.
Shape of the installation opening: Round.
Mounting diameter: 16 mm.
Mounting height: 20 mm.
Installation width: 19 mm.
Installation depth: 50 mm.
