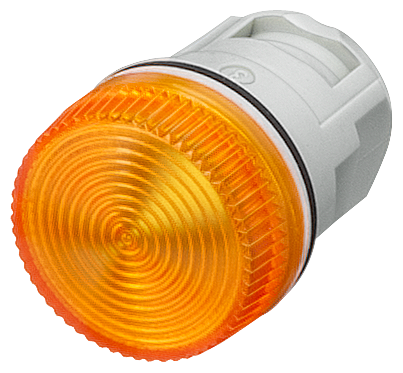

Indicator light, 16 mm, round plastic, yellow
SKU: 3SB2001-6CD06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Indicator light, 16 mm, circular, plastic, yellow, smooth, for engraving with insert caps.
Product brand name: SIRIUS.
Product designation: Indicator lights.
Design of the product: Single device round.
Product type designation: 3SB2.
Enclosure:
Number of command points: 0.
Actuator:
Design of the actuating element: Indicator lights.
Product extension optional light source: No.
Color of the actuating element: Yellow.
Material of the actuating element: plastic.
Shape of the actuating element: Smooth lens.
Outer diameter of the actuating element: 19 mm.
Type of unlocking device: Without.
Number of switching positions: 0.
Front ring:
Product component front ring: No.
Holder:
Material of the holder: Plastic.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Product function:
EMERGENCY OFF function: No.
EMERGENCY STOP function: No.
Protection class IP: IP65.
Vibration resistance according to IEC 60068-2-6: 20 ... 200 Hz: 5g.
Reference code according to IEC 81346-2: P.
Substance Prohibitance (Date): 07/01/2006.
Weight: 0.004 kg.
Connections/ Terminals:
Tightening torque of the screws in the bracket maximum: 0.4 N·m.
Ambient conditions:
Ambient temperature:
During operation: -25 ... +70 °C.
During storage: -40 ... +80 °C.
Environmental category during operation according to IEC 60721: 3K6.
Installation/ mounting/ dimensions:
Fastening method: front plate mounting.
Shape of the installation opening: round.
Mounting diameter: 16 mm.
Mounting height: 9 mm.
Installation width: 19 mm.
Installation depth: 50 mm.
