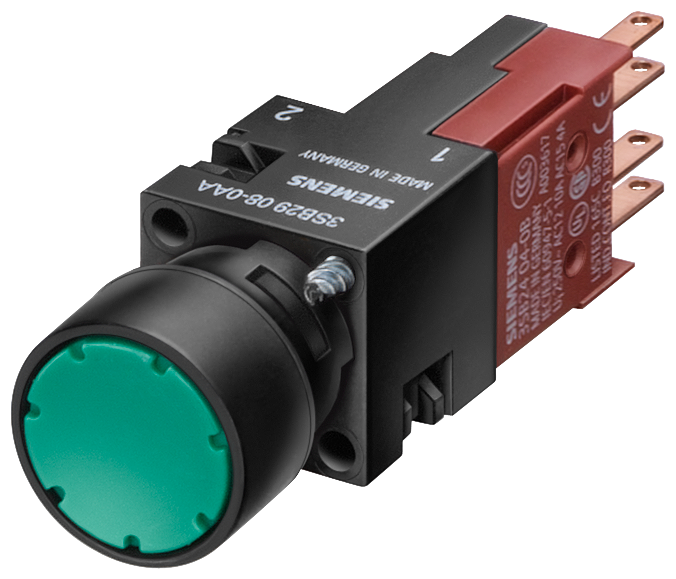

Pushbutton, 16 mm, round plastic, 3SB2202-0AH01
SKU: 3SB2202-0AH01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product brand name: SIRIUS.
Product designation: pushbuttons.
Design of the product: Complete unit round.
Product type designation: 3SB2.
Number of command points: 1.
1 NO Pushbuttons SIRIUS 3SB2 for switching and controlling electrical loads.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Design of the actuating element: pushbutton.
Principle of operation of the actuating element: momentary contact type.
Colour of the actuating element: clear.
Material of the actuating element: plastic.
Shape of the actuating element: Flat pushbutton.
Number of switching positions: 2.
Product component front ring: yes.
Design of the front ring: Standard.
Material of the front ring: plastic.
Colour of the front ring: black.
Material of the holder: Plastic.
Number of switching elements: 1.
Protection class IP: IP65.
Type of electrical connection: tab terminals.
Tightening torque of the screws in the bracket maximum: 0.4 NM.
Fastening method: front plate mounting.
Shape of the installation opening: round.
Mounting diameter: 16 mm.
Mounting height: 8 mm.
Installation width: 19 mm.
Installation depth: 50 mm.
