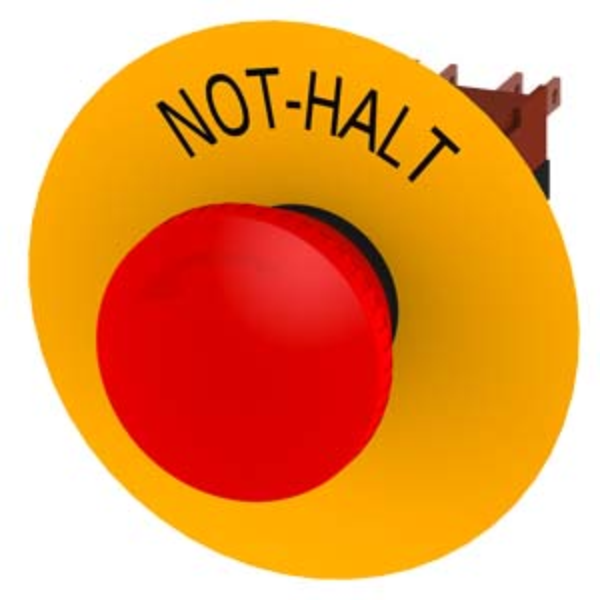

Emergency stop mushroom pushbutton, 16 mm, round, plastic, red, latching, with rotate-to-unlatch mechanism

Specifications: Product Brand name: SIRIUS. Product designation: Emergency stop mushroom pushbuttons. Design of the product: Complete unit round with positive latching in accordance with ISO 13850. Product type designation: 3SB2. Number of command points: 1. Type of voltage of the operating voltage: AC/DC. Operating voltage rated value: 5 – 250V. Protection class: IP65. Material of the holder: Plastic. Marking of backing plate: Yellow backing plate, inscription “not-halt”. Actuator: Design of the actuating element: Emergency stop mushroom pushbutton. Principal of operation of the actuating element: Latching. Product extension optional light source: no. Colour of the actuating element: Red. Material of the actuating element: Plastic. Shape of the actuating element: Rotate-to-unlatch mechanism. Number of switching positions: 2. Front ring: Product component front ring: no. Contact block/lamp holder: Number of lamp holders: 0. Number of switching elements: 1. Auxiliary circuit: Number of NC contacts for auxiliary contacts: 1. Number of NO contacts for auxiliary contacts: 0. Number of CO contacts for auxiliary contacts: 0. Operational current at AC – 12: At 24V rated value: 10A. At 60V rated value: 10A. At 110V rated value: 10A. At 230V rated value: 10A. Operational current at AC – 15: At 24V rated value: 4A. At 110V rated value: 4A. At 230V rated value: 4A. Operational current at DC – 12: At 24V rated value: 6A. At 60V rated value: 5A. At 110V rated value: 2.5A. At 230V rated value: 1A. Operational current at DC -13: At 24V rated value: 3A. At 60V rated value: 1.2A. At 110V rated value: 0.7A. At 230V rated value: 0.3A. Connections/Terminals: Type of electrical connection: Tab terminals. Tightening torque of the screws in the bracket maximum: 0.4 N-m. Ambient Temperature: During operation: -25 - +70°C. During Storage: -40 - +80°C. Installation / Mounting / Dimensions: Fastening method: Front plate mounting. Shape of the installation opening: Round. Mounting diameter: 16 mm. Mounting height: 21 mm. Installation width: 28.5 mm. Installation depth: 50 mm.
