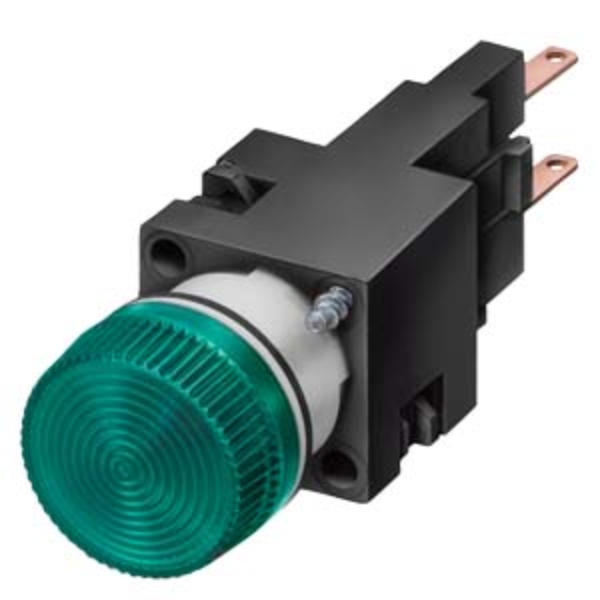

Indicator light, 16 mm, round, plastic, clear, Lampholder W2 x 4.6 d, without lamp
SKU: 3SB2204-6BH06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Indicator Light, 16 mm, Round, Plastic, Clear, Lamp holder W2 x 4.6 d (without bulb) SIRIUS 3SB2 indicator lights are used to signal switching statuses or system issues.
The industry-standard 3SB2 pushbuttons and indicator lights are modularly designed and have been tested in practice.
Their tiny size makes them ideal for small control panels.
They are highly functional and rugged and meet the IEC/EN 60947-5-1 and 60947-5-5 standards.
They may be put at a high packing density without the use of any special tools.
3SB2—space-saving, tested in practice, and industry standard.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Brand name: SIRIUS.
Product designation: Indicator lights.
Design of the product: Complete unit round.
Product type designation: 3SB2.
Number of command points: 0.
Type of voltage of the operating voltage: AC/DC.
Operating voltage rated value: 5 – 60V.
Protection class: IP65.
Material of the holder: Plastic.
Actuator:
Design of the actuating element: Indicator light.
Product extension optional light source: Yes.
Colour of the actuating element: Clear.
Material of the actuating element: Plastic.
Type of unlocking device: Without.
Number of switching positions: 2.
Front ring:
Product component front ring: no.
Contact block/lamp holder:
Socket design: W2 x 4.6d without lamp.
Number of lamp holders: 1.
Number of switching elements: 0.
Auxiliary circuit:
Number of NC contacts for auxiliary contacts: 0.
Number of NO contacts for auxiliary contacts: 0.
Number of CO contacts for auxiliary contacts: 0.
Connections/Terminals:
Type of electrical connection: Tab terminals.
Tightening torque of the screws in the bracket maximum: 0.4 N-m.
Ambient Temperature:
During operation: -25 - +60°C.
During Storage: -40 - +80°C.
Installation / Mounting / Dimensions:
Fastening method: Front plate mounting.
Shape of the installation opening: Round.
Mounting diameter: 16 mm.
Mounting height: 9 mm.
Installation width: 19 mm.
Installation depth: 50 mm.
