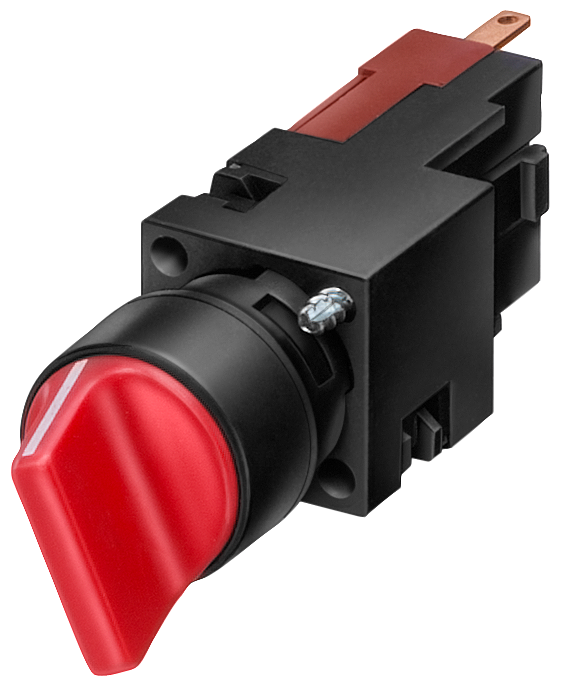

Selector switch, 16 mm, round, plastic, black, 3 switch positions
SKU: 3SB2210-2EB01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Selector switch, 16 mm circular, plastic, black, three switch positions.
IOII, instantaneous contact type.
Retraction from the left and right.
Actuating angle: 2 x 50 degrees, 1 NO.
SIRIUS 3SB2 selector switches allow you to switch and manage electrical loads.
The industry-standard 3SB2 pushbuttons and indicator lights are modularly designed and have been tested in practice.
Their tiny size makes them ideal for small control panels.
They are highly functional and rugged and meet the IEC/EN 60947-5-1 and 60947-5-5 standards.
They may be put at a high packing density without the use of any special tools.
Versions include multiple colours, 2-3 switching positions, and latching/momentary contact operation.
Note: Complete unit, including holder and contact block(s).
3SB2—Space-saving, tested in practice, and industry standard.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS.
Product designation: Selector switches.
Design of the product: Complete unit round.
Product type designation: 3SB2.
Number of Command Points: 1.
Material of holder: Plastic.
Type of voltage of the operating voltage: AC/DC.
Protection class IP: IP65.
Operating voltage rated value: 5 ... 250 V.
Actuator:
Design of the actuating element: selector switch.
Principle of operation of the actuating element: momentary contact type.
Product extension optional light source: no.
Colour of the actuating element: black.
Material of the actuating element: plastic.
Number of switching positions: 3.
Front Ring:
Product component front ring: yes.
Design of the front ring: Standard.
Material of the front ring: plastic.
Colour of the front ring: black.
Contact block/ lamp holder:
Number of lamp holders: 0.
Number of switching elements: 2.
Auxiliary circuit:
Number of NC contacts for auxiliary contacts: 0.
Number of NO contacts for auxiliary contacts: 2.
Number of CO contacts for auxiliary contacts: 0.
Connections/ Terminals:
Type of electrical connection: tab terminals.
Tightening torque of the screws in the bracket maximum: 0.4 NM.
Ambient temperature:
During Operation: -25 ... +70 °C.
During Storage: -40 ... +80 °C.
Installation/ mounting/ dimensions:
Fastening method: front plate mounting.
Shape of the installation opening: Round.
Mounting diameter: 16 mm.
Mounting height: 17 mm.
Installation width: 19 mm.
Installation depth: 50 mm.
