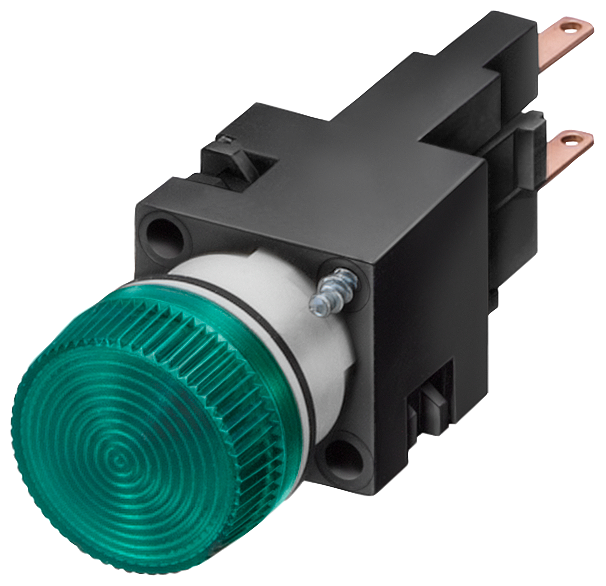

Indicator light, 16 mm, round plastic, 3SB2224-6BH06
SKU: 3SB2224-6BH06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product brand name: SIRIUS.
Product designation: Indicator lights.
Design of the product: Complete unit round.
Product type designation: 3SB2.
Number of command points: 0.
With incandescent lamp 24 V Indicator lights SIRIUS 3SB2 for signaling switching statuses or faults in systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Design of the actuating element: indicator light.
Colour of the actuating element: clear.
Material of the actuating element: plastic.
Number of switching positions: 2.
Product component front ring: no.
Material of the holder: Plastic.
Socket design: W2 x 4.6d with lamp.
Number of lamp holders: 1.
Number of switching elements: 0.
Protection class IP: IP65.
Type of electrical connection: tab terminals.
Tightening torque of the screws in the bracket maximum: 0.4 NM.
Fastening method: front plate mounting.
Shape of the installation opening: round.
Mounting diameter: 16 mm.
Mounting height: 9 mm.
Installation width: 19 mm.
Installation depth: 50 mm.
