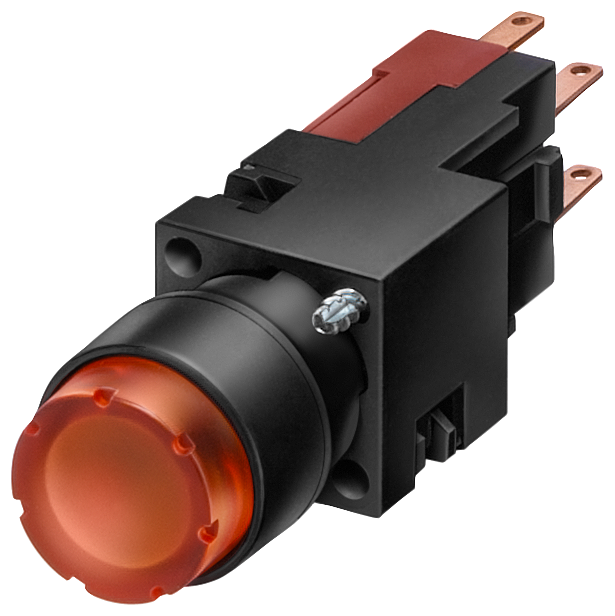

Illuminated pushbutton, 16 mm, round, plastic, yellow, pushbutton, raised, 1 NO, Lampholder W2 x 4.6 d
SKU: 3SB2226-0LD01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Lamp holder W2 x 4.6 d, illuminated pushbutton, 16 mm, round, plastic, yellow, pushbutton, raised, 1 NO 24 volts.
SIRIUS 3SB2 illuminated pushbuttons for electrical load control and switching.
The modular design of the industry-standard 3SB2 pushbuttons and indicator lights has been validated in real-world applications.
They work especially well with small control panels because of their small size.
They meet IEC/EN 60947-5-1 and 60947-5-5 standards and are incredibly durable and functional.
They don't require any special tools and may be fitted with a high packing density.
Various colours lit or non-illuminated, with or without inscription, latching or momentary contact function, and different button heights are among the possible versions.
Note: Complete unit, including contact block(s) and holder.
3SB2: Space-saving, industry standard, and demonstrated in practice.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS.
Product designation: Illuminated pushbuttons.
Design of the product: Complete unit round.
Product type designation: 3SB2.
Number of command points: 1.
Product component light source: yes.
Type of voltage of the operating voltage: AC/DC.
Protection class IP: IP65.
Operating voltage rated value: 5 ... 60 V.
Material of the holder: plastic.
Actuator:
Design of the actuating element: Illuminated pushbutton.
Principle of operation of the actuating element: momentary contact type.
Colour of the actuating element: yellow.
Material of the actuating element: plastic.
Shape of the actuating element: Raised pushbutton.
Number of switching positions: 2.
Front ring:
Product component front ring: Yes.
Design of the front ring: Standard.
Material of the front ring: plastic.
Colour of the front ring: black.
Contact block/ lamp holder:
Socket design: W2 x 4.6d with lamp.
Number of lamp holders: 1.
Number of switching elements: 1.
Supply voltage:
Type of voltage of the light source: AC/DC.
Supply voltage of the light source at AC:
At 50 Hz rated value: 24V.
At 60 Hz rated value: 24V.
Supply voltage 1 of the light source at DC rated value: 24V.
Auxiliary circuit:
Number of NC contacts for auxiliary contacts: 0.
Number of NO contacts for auxiliary contacts: 1.
Number of CO contacts for auxiliary contacts: 0.
Consumed current for rated value of supply voltage maximum: 40 mA.
Connections/ Terminals:
Type of electrical connection: tab terminals.
Tightening torque of the screws in the bracket maximum: 0.4NM.
Ambient temperature:
During operation: -25 ... +60 °C.
During storage: -40 ... +80 °C.
Installation/ mounting/ dimensions:
Fastening method: front plate mounting.
Shape of the installation opening: round.
Mounting diameter: 16 mm.
Mounting height: 12 mm.
Installation width: 19 mm.
Installation depth: 50 mm.
