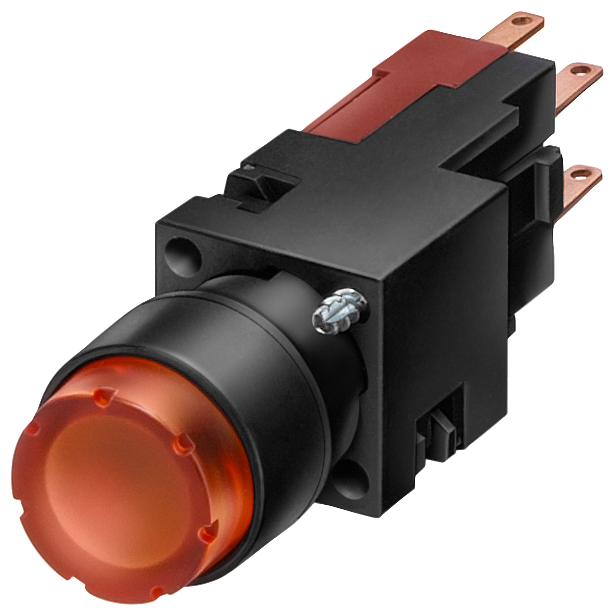

Illuminated pushbutton, 16 mm, round plastic
SKU: 3SB2226-0LH01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Illuminated pushbutton, 16 mm, round, plastic, clear, pushbutton, raised, 1 NO, Lampholder W2 x 4.6 d, incandescent light 24 V.
Product brand name: SIRIUS.
Product designation: Illuminated pushbuttons.
Design of the product: Complete unit round.
Product type designation: 3SB2.
Enclosure:
Number of command points: 1.
Actuator:
Design of the actuating element: Illuminated pushbuttons.
Principle of operation of the actuating element: Momentary contact type.
Product extension optional light source: Yes.
Color of the actuating element: Clear.
Material of the actuating element: plastic.
Shape of the actuating element: Raised pushbutton.
Type of unlocking device: Without.
Number of switching positions: 2.
Front ring:
Product component front ring: Yes.
Design of the front ring: Standard.
Material of the front ring: plastic.
Color of the front ring: black.
Holder:
Material of the holder: Plastic.
Contact block/ lamp holder:
Socket design: W2 x 4.6d with lamp.
Number of lamp holders: 1.
Number of switching elements: 1.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Product function:
Positive opening: No.
EMERGENCY STOP function: No.
Product component light source: Yes.
Type of voltage of the operating voltage: AC/DC.
Protection class IP: IP65.
Vibration resistance according to IEC 60068-2-6: 20 ... 200 Hz: 5g.
Operating frequency maximum 1 000 1/h.
Mechanical service life (operating cycles) typical: 3 000 000.
Reference code according to IEC 81346-2: S.
Substance Prohibitance (Date): 07/01/2006.
Weight: 0.025 kg.
Operating voltage rated value: 5 ... 60 V.
Supply voltage:
Type of voltage of the supply voltage:
Of the light source: AC/DC.
Supply voltage of the light source at AC:
At 50 Hz rated value: 24 V.
At 60 Hz rated value: 24 V.
Supply voltage 1 of the light source at DC rated value: 24 V.
Relative negative tolerance of the supply voltage: -15 %.
Relative positive tolerance of the supply voltage: 10 %.
Connections/ Terminals:
Type of electrical connection: tab terminals.
Tightening torque of the screws in the bracket maximum: 0.4 N·m.
Ambient conditions:
Ambient temperature:
During operation: -25 ... +60 °C.
During storage: -40 ... +80 °C.
Environmental category during operation according to IEC 60721: 3K6.
Installation/ mounting/ dimensions:
Fastening method: front plate mounting.
Shape of the installation opening: round.
Mounting diameter: 16 mm.
Mounting height: 12 mm.
Installation width: 19 mm.
Installation depth: 50 mm.
