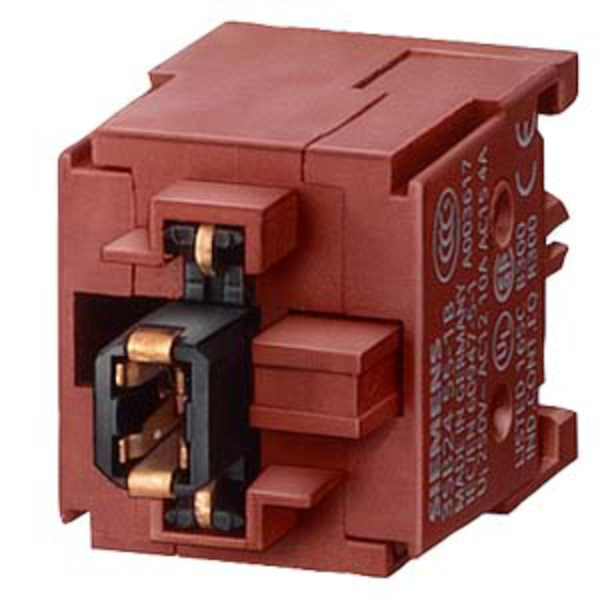

Contact block and lampholder, 1 NO, wedge base W2x4.6D, soldering pin connection
SKU: 3SB2455-1B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Contact block and light holder 1 NO, wedge base (W2 x 4.6 d), soldering pin connection.
Product brand name: SIRIUS.
Product designation: contact block and lamp holder.
Product type designation: 3SB2.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Product function positive opening: No.
Product component:
Light source: No.
Suitability for integration: pushbutton / selector button.
Type of voltage:
Of the operating voltage: AC/DC.
Protection class IP:
Of the enclosure: IP40.
Of the terminal: IP00.
Vibration resistance according to IEC 60068-2-6: 20 ... 200 Hz: 5g.
Reference code according to IEC 81346-2: S.
Substance Prohibitance (Date): 07/01/2006.
Weight: 0.008 kg.
Operating voltage:
At AC:
At 50 Hz rated value: 5 ... 60 V.
At 60 Hz rated value: 5 ... 60 V.
At DC rated value: 5 ... 60 V.
Ambient conditions:
Ambient temperature:
During operation: -25 ... +60 °C.
During storage: -40 ... +80 °C.
