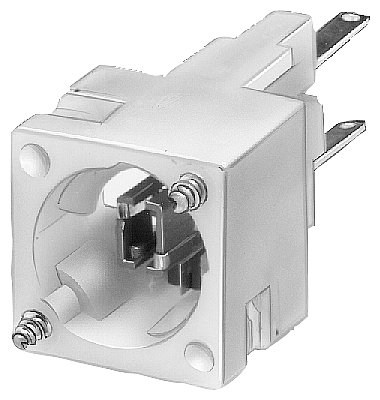

Contact block and lampholder, 1 NC, wedge base W2x4.6D, soldering pin connection
SKU: 3SB2455-1C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Contact block with lamp holder: 1 NC, wedge base (W2 x 4.6 d) with soldering pin connection.
Product brand name: SIRIUS.
Product designation: Contact block and lamp holder.
Product type designation: 3SB2.
Contact block/ lamp holder:
Socket design: W2 x 4.6d.
Number of lamp holders: 1.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Product function positive opening: Yes.
Product component:
Light source: No.
suitability for integration: pushbutton / selector button.
type of voltage:
Of the operating voltage: AC/DC.
Vibration resistance according to IEC 60068-2-6: 20 ... 200 Hz: 5g.
Reference code according to IEC 81346-2: S.
Substance Prohibitance (Date): 07/01/2006.
Weight: 0.008 kg.
Operating voltage:
At AC:
At 50 Hz rated value: 5 ... 60 V.
At 60 Hz rated value: 5 ... 60 V.
At DC rated value: 5 ... 60 V.
Connections/ Terminals:
Type of electrical connection: Solder pin connectors.
Ambient conditions:
Ambient temperature:
During operation: -25 ... +70 °C.
During storage: -40 ... +80 °C.
Installation/ mounting/ dimensions:
Fastening method: Clip-on.
Height: 19 mm.
Width: 18 mm.
Depth: 29 mm.
