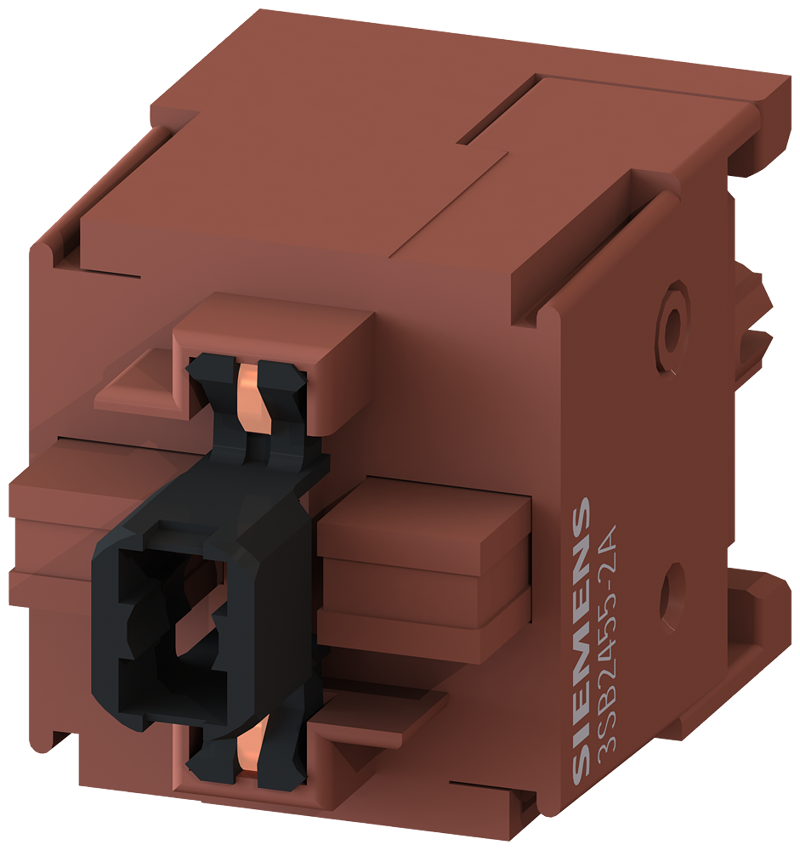

Lampholder, wedge base W2x4.6D, soldering pin connection with soldering pins
SKU: 3SB2455-2A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Lamp holder featuring a wedge base W2 x 4.6 d and soldering pins for connecting solder pins.
Product brand name: SIRIUS.
Product designation: Lamp holder.
Product type designation: 3SB2.
Contact block/ lamp holder:
Socket design: W2 x 4.6d.
Number of lamp holders: 1.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Product function positive opening: No.
Product component:
Light source: No.
suitability for integration: front element.
type of voltage:
Of the operating voltage: AC/DC.
Vibration resistance according to IEC 60068-2-6: 20 ... 200 Hz: 5g.
Reference code according to IEC 81346-2: P.
Substance Prohibitance (Date): 07/01/2006.
Weight: 0.001 kg.
Operating voltage:
At AC:
At 50 Hz rated value: 5 ... 60 V.
At 60 Hz rated value: 5 ... 60 V.
At DC rated value: 5 ... 60 V.
Connections/ Terminals:
Type of electrical connection: Solder pin connectors.
Ambient conditions:
Ambient temperature:
During operation: -25 ... +60 °C.
During storage: -40 ... +80 °C.
Installation/ mounting/ dimensions:
Fastening method: Clip-on.
Height: 19 mm.
Width: 18 mm.
Depth: 29 mm.
