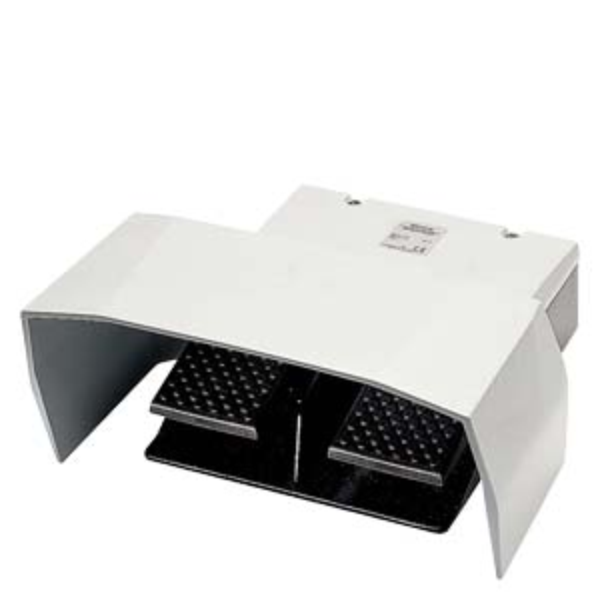

Momentary-contact foot switch, 2-pedal with cover, without latching, metal enclosure IP65
SKU: 3SE2932-0AA20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Momentary-contact foot switch.
2-pedal with cover, without latching.
Metal enclosure IP65.
Cable entry M25 x 1.5 slow-action contacts 1 NO+1 NC per pedal.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Brand name: SIRIUS.
Product designation: Momentary-contact foot switch.
Product type designation: 3SB2.
Suitability for use safety switch: no.
Number of switching steps: 1.
Number of actuation pedals: 2.
Ambient Temperature during operation: -25 - +80°C.
Number of NC contacts for auxiliary contacts: 1.
Number of NO contacts for auxiliary contacts:1.
Operational current at AC – 15:
At 230V rated value: 16A.
At 400V rated value: 16A.
Operational current at DC -13:
At 24V rated value: 3A.
At 250V rated value: 0.25A.
Cable entry type: M25 x 1.5.
Enclosure:
Material of enclosure: Metal.
Colour:
Of the enclosure: Black.
Of the enclosure top part: Grey.
Dimensions:
Height: 140 mm.
Width: 284 mm.
Depth: 267 mm.
