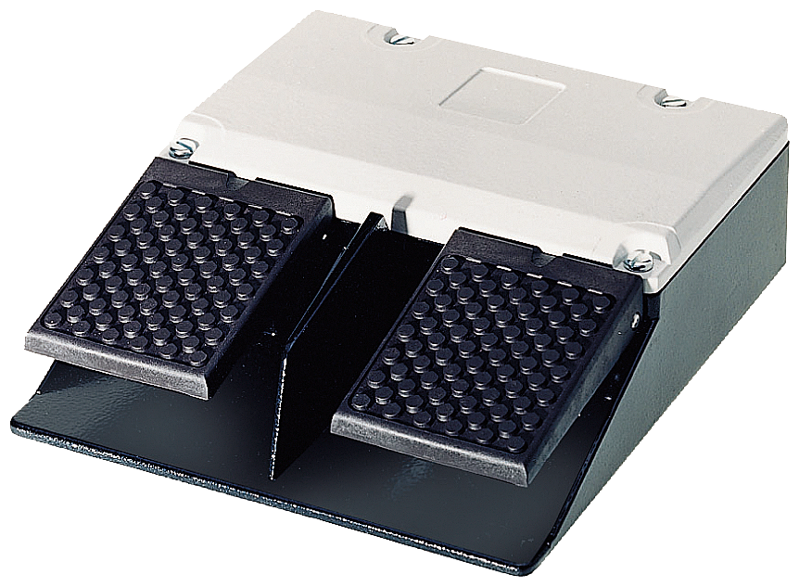

Momentary-contact foot switch, 2-pedal cable entry M25x1.5 IP65, 2 NO + 2 NC
SKU: 3SE2932-1AB20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Momentary-contact foot switch, 2-pedal without cover, no latching Metal enclosure IP65, 2 NO+2 NC, cable access M25x1.5
Product brand name: SIRIUS.
Product designation: momentary-contact foot switch.
Product type designation: 3SE29.
Suitability for use safety switch: No.
Enclosure:
Material of the enclosure: metal
Colour:
Of the enclosure: black.
Of the enclosure top part: grey.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Protection class IP: IP65.
Mechanical service life (operating cycles) typical: 1 000 000.
Reference code according to IEC 81346-2: S.
Substance Prohibitance (Date): 07/01/2006.
SVHC substance name: Lead - 7439-92-1.
Weight: 2.038 kg.
Number of switching steps: 1.
Number of the actuation pedals: 2.
Minimum actuating force in directions of actuation: 20 N.
Ambient conditions:
Ambient temperature during operation: -25 ... +80 °C.
Number of NC contacts for auxiliary contacts: 2.
Number of NO contacts for auxiliary contacts: 2.
Operational current at AC-15:
At 230 V rated value: 6 A.
At 400 V rated value: 6 A.
Operational current at DC-13:
At 24 V rated value: 3 A.
At 250 V rated value: 0.25 A.
Installation/ mounting/ dimensions:
Height: 68 mm.
Width: 193 mm.
Depth: 221 mm.
