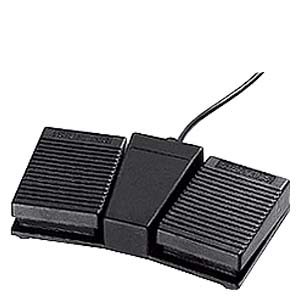

Pedal switch, 2 CO, 2 pedals, without protective cover
SKU: 3SE3934-5CB20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Pedal switch has two changeover contacts, without a protective cover.
Product brand name: SIRIUS.
Product designation: Momentary-contact foot switch.
Product type designation: 3SE39.
Suitability for use safety switch: No.
Enclosure:
Material of the enclosure: plastic with total insulation.
Colour:
Of the enclosure: black.
Of the enclosure top part: black.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Protection class IP: IP65.
Mechanical service life (operating cycles) typical: 1 000 000.
Reference code according to IEC 81346-2: S.
Substance Prohibitance (Date): 07/01/2006.
Weight: 0.718 kg.
Number of switching steps: 1.
Number of the actuation pedals: 2.
Ambient conditions:
Ambient temperature during operation: -10 ... +75 °C.
Number of NC contacts for auxiliary contacts: 0.
Number of NO contacts for auxiliary contacts: 0.
operational current at AC-15 at 230 V rated value: 5 A
Installation/ mounting/ dimensions:
Fastening method: screw fixing.
Height: 108 mm.
Width: 212 mm.
Depth: 34 mm.
