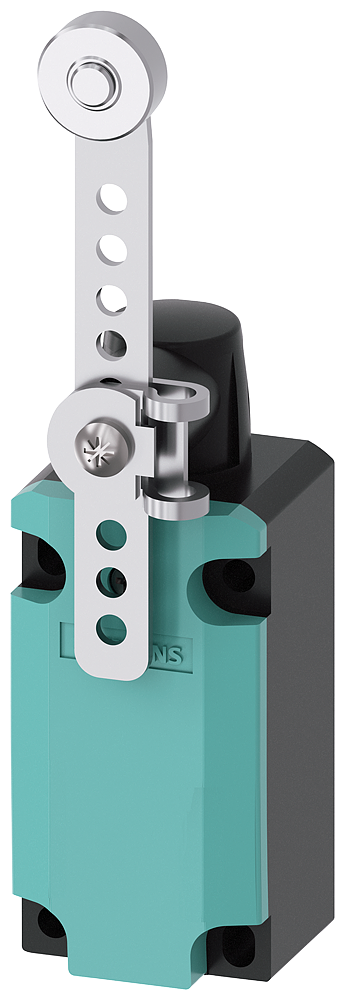

Position switch Metal enclosure 40 mm according to EN 50041 Device connection 1x (M20 x 1.5) 1 NO/1 NC quick action contacts Rotary actuator right/left adjustable
SKU: 3SE5112-0CH62-1AJ0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Position switch Metal enclosure 40 mm according to EN 50041
Device connection 1x (M20 x 1.5) 1 NO/1 NC quick action contacts
Rotary actuator right/left adjustable with adjustable-length stainless steel lever 100 mm long and with positive fit (grid hole) and plastic roller 19 mm
Functional at -40 °C Shock and vibration test according to EN 61373
Due to their high degree of protection, the devices are suitable for use in extreme environmental conditions.
Buy currently uses Select Automation shop pricing and checkout.
#html-body [data-pb-style=RI9OO6Y]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}•Category 1B Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment for extreme environmental conditions down to -40 °C, e.g. in wind energy plants.•In the food and beverage industry, or for railway applications.•They have increased corrosion protection, have been tested for shock and impact, and are approved worldwide (IEC, UL). •With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met.•Various enclosure sizes are available in plastic or metal. •In addition, versions are available with separate actuator or tumbler.•Depending on the design, various operating mechanisms and separate actuators are available.•Safety is a SIRIUS business.
