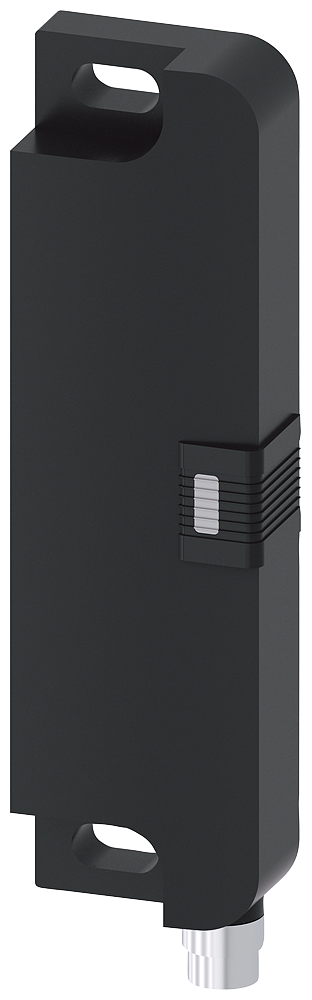

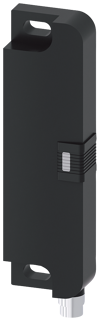

Magnetic switch contact block 25 x 88 mm, for door hinge l safety contacts 2 NC, 3SE6614-4CA01
SKU: 3SE6614-4CA01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Magnet switch:
Contact block 25 x 88 mm
For door hinge on the left
Contact elements:
Safety contacts 2 NC with M8 connector
4-pole with combi connection
Screw/latching connection with LED
The matching solenoid 3SE6714-2CA or offset by 90° 3SE6724-2CA
Magnetically operated switch SIRIUS 3SE66 for space-saving and manipulation-proof monitoring of a guard fence, cover or door.
Buy currently uses Select Automation shop pricing and checkout.
#html-body [data-pb-style=UU5RTCP]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}Description:•The contactless coded devices are small and compact and are therefore suitable for use where space is very limited. •They meet the highest safety requirements specified by PL e or SIL 3. •Their non-wearing switching operations ensure a long service life.•They are available in various shapes and sizes. •Different combinations of contact elements and cable lengths, versions with LEDs for fast diagnosis, and plug-in connectors for fast connection are available.•Spacers and various couplings with connection cables of various lengths are available as accessories.•Safety is a SIRIUS business.
