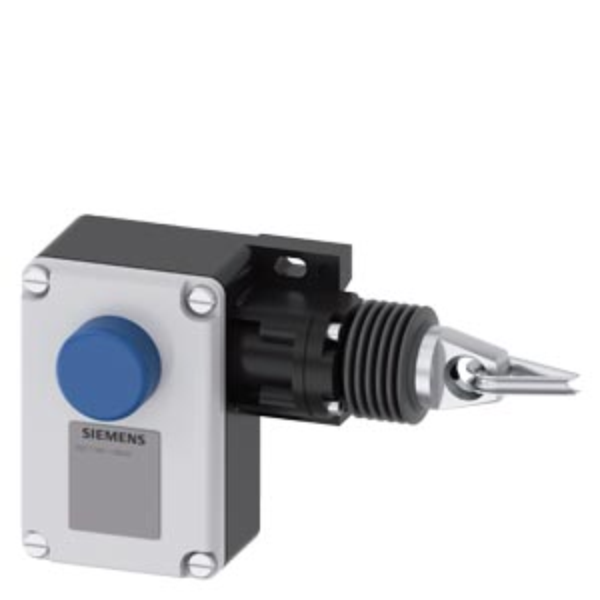

Cable-operated switch Metal enclosure, 1x M20x1.5; 1 NO+1 NC, latching EN ISO 13850 and pushbutton release, for wire lengths up to 50 m
SKU: 3SE7140-1BD00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Cable-operated switch. Metal enclosure with 1x M20x1.5, 1 NO+1 NC, latching EN ISO 13850, and pushbutton release for wire lengths up to 50m.
SIRIUS 3SE7 cable-operated switch for monitoring or EMERGENCY STOP devices on system components prone to risks, such as conveyor belts, with wire lengths up to 50 m.
Cable-operated switches can be used to implement control functions and EMERGENCY STOP for any demand or routing path.
The devices are simple to unlock and feature integrated EMERGENCY STOP buttons as well as an LED signal display that can be seen from a long distance.
The switches are suitable for applications with the highest safety criteria required by PL e or SIL 3.
They are available in a variety of wire lengths, switching element combinations, LED displays, and EMERGENCY STOP mushroom pushbuttons.
Versions with latching come with pressure, key, or rotate-to-unlatch methods.
Accessories include steel cables with red plastic sheathing in a variety of lengths, as well as related mounting accessories.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Brand name: SIRIUS.
Product designation: Cable operated switch.
Product type designation: 3SE7.
Terminal current: 6A.
Ambient Temperature during operation: -25 - +70°C.
Number of NC contacts for auxiliary contacts: 1.
Number of NO contacts for auxiliary contacts:1.
Operational current at AC – 15:
At 240V rated value: 6A.
At 400V rated value: 6A.
Operational current at DC – 13:
At 24V rated value: 3A.
At 250V rated value: 0.27A.
Enclosure:
Material of enclosure: Metal.
Material of the enclosure cover: Plastic.
Colour:
Of the enclosure: Black.
Of the enclosure top part: Grey.
Coating of enclosure: Painted.
Display:
Product function status display: no.
Circuit principal: jump function.
Material of the contact: silver.
Number of switching contacts safety-related: 1.
Cable entry: 2 x M20 x 1.5.
Installation/Mounting/Dimensions:
Fastening method: Screw fixing.
Height: 105 mm.
Width: 167 mm.
Depth: 71 mm.
Connections/Terminals:
Type of electrical connection: Screw terminal.
