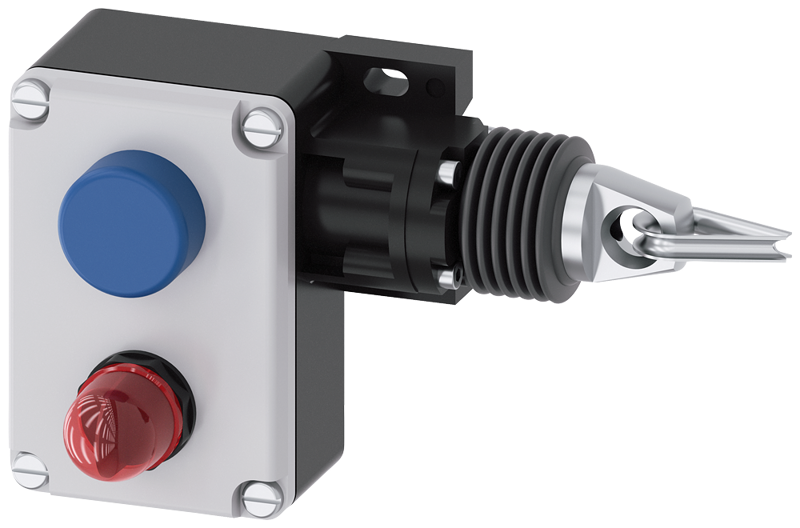

SIRIUS cable-operated switch metal encl., 1xM20x1.5 1 NO + 1 NC

Specifications: EMERGENCY STOP function. Insulation voltage rated value: 400 V. Surge voltage resistance rated value: 6 kV. Protection class IP: IP65. Thermal current: 6 A. Substance Pro habitancy (Date): 07/01/2006. Ambient temperature during operation: -25 ... +70 °C. Number of NC contacts for auxiliary contacts: 1. Number of NO contacts for auxiliary contacts: 1. Operational current at AC-15: At 240 V rated value: 6 A. At 400 V rated value: 6 A. Operational current at DC-13: At 24 V rated value: 3 A. At 250 V rated value: 0.27 A. Material of the enclosure: metal. Material of the enclosure cover: Plastic. Colour: Of the enclosure: black. Of the enclosure top part: grey. Coating of the enclosure: painted. Colour of the light source: red. Circuit principle: Jump function. Material of the contact: Silver. Number of switching contacts safety-related: 1. Cable entry type: 1x M20 x 1,5. Fastening method: screw fixing. Height: 105 mm. Width: 167 mm. Depth: 89 mm. Type of electrical connection: screw terminal. Type of voltage of the supply voltage of the light source: DC. Supply voltage 1 of the light source at DC rated value: 24 V.
