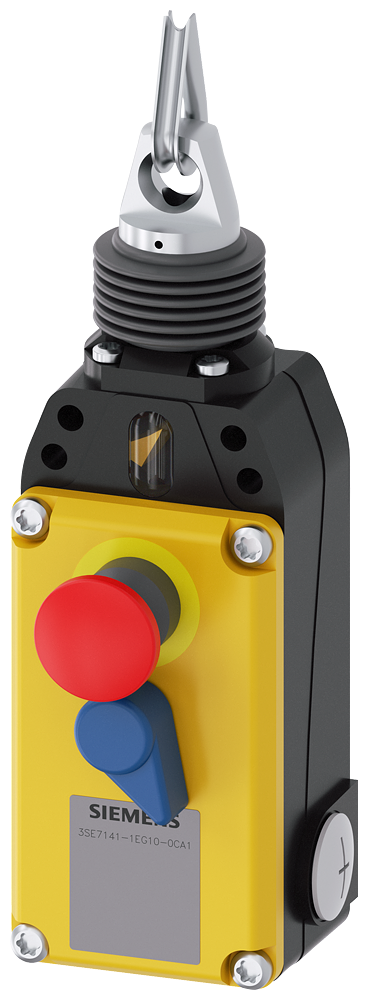

Cable-operated switch with emergency stop metal enclosure IP67, yellow cover
SKU: 3SE7141-1EG10-0CA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This cable-operated switch features an IP67 metal housing, a yellow cover, 3 x M20 1.5 contacts, 1 NO + 3 NC latching, and a rotate-to-unlatch mechanism for cable lengths of up to 75 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: 3SE7.
Product Emergency stop function: yes.
Product component light source: no.
Insulation voltage rated value: 250V.
Degree of pollution: class 3.
Surge voltage resistance rated value: 2.5kV.
Thermal current: 2A.
Continuous current of the DIAZED fuse link gG: 2A.
Type of electrical connection: Screw terminal.
Ambient Conditions:
Ambient temperature during operation: -25 to +70°C.
Number of NC contacts for auxiliary contacts: 3.
Number of NO contacts for auxiliary contacts: 1.
Operational current at AC-15:
At 240V rated value: 6A.
Operational current at DC-13:
At 24V rated value: 2A.
At 250V rated value: 0.25A.
Enclosure:
Material of the enclosure: Metal.
Material of the enclosure cover: Plastic.
Product component emergency stop device: yes.
Colour:
Of the enclosure: Black.
Of the enclosure top part: yellow.
Coating of the enclosure: Painted.
Display:
Product function status display: yes.
Circuit principle: Slow-action function.
Material of the contact: Silver.
Number of switching contacts safety related: 3.
Cable entry type: 3x M20 x 1.5.
Installation/mounting/dimensions:
Fastening method: Screw fixing.
Height: 201 mm.
Width: 67 mm.
Depth: 83 mm.
