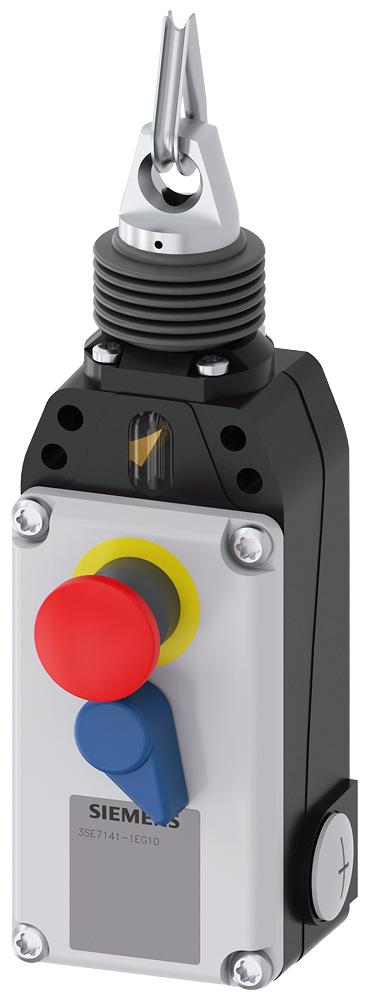

Cable-operated switch with EMERGENCY STOP function, 3x M20x1.5
SKU: 3SE7141-1EG10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Cable-operated switch with emergency stop.
Metal housing IP67, 3 x M20 x 1.5; slow-action contacts.
1 NO+3 NC Latching according to EN ISO 13850, featuring a rotate-to-unlatch mechanism, for wire lengths up to 75 meters.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
EMERGENCY STOP function.
Insulation voltage rated value: 250 V.
Surge voltage resistance rated value: 2.5 kV.
Protection class IP: IP67.
Thermal current: 2 A.
Substance Pro habitancy (Date): 07/01/2006.
Ambient temperature during operation: -25 ... +70 °C.
Number of NC contacts for auxiliary contacts: 3.
Number of NO contacts for auxiliary contacts: 1.
Operational current at AC-15:
At 240 V rated value: 6 A.
Operational current at DC-13:
At 24 V rated value: 2 A.
At 250 V rated value: 0.25 A.
Material of the enclosure: metal.
Material of the enclosure cover: Plastic.
Colour:
Of the enclosure: black.
Of the enclosure top part: grey.
Coating of the enclosure: painted.
Circuit principle: Slow-action function.
Material of the contact: Silver.
Number of switching contacts safety-related: 3.
Cable entry type: 3x M20 x 1,5.
Fastening method: screw fixing.
Height: 201 mm.
Width: 67 mm.
Depth: 83 mm.
Type of electrical connection: screw terminal.
