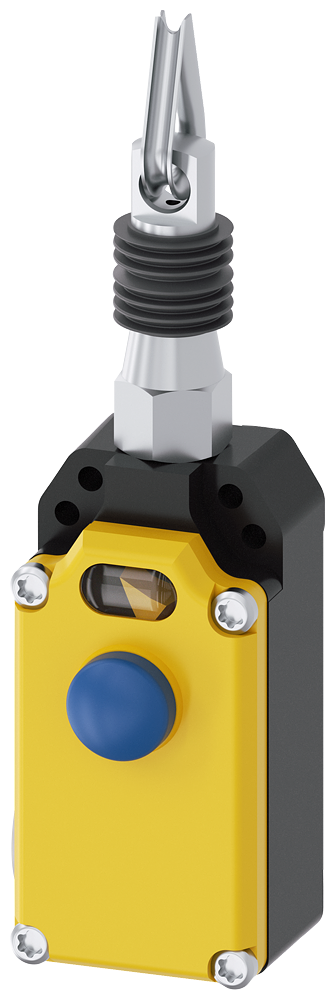

Cable-operated switch metal encl., 2x M20x1.5 1 NO + 2 NC, latching EN ISO 13850
SKU: 3SE7150-1BH00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIRIUS cable-operated switch aluminium box with yellow cover, 2 x M20 x 1.5; 1 NO+2 NC, latching according to EN ISO 13850, button reset, cable length 20 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
EMERGENCY STOP function.
Insulation voltage rated value: 250 V.
Surge voltage resistance rated value: 6 kV.
Protection class IP: IP65.
Thermal current: 2 A.
Substance Pro habitancy (Date): 07/01/2006.
Ambient temperature during operation: -25 ... +70 °C.
Number of NC contacts for auxiliary contacts: 2.
Number of NO contacts for auxiliary contacts: 1.
Operational current at AC-15:
At 240 V rated value: 2 A.
Operational current at DC-13:
At 24 V rated value: 3 A.
At 250 V rated value: 0.27 A.
Material of the enclosure: metal.
Material of the enclosure cover: Plastic.
Colour:
Of the enclosure: black.
Of the enclosure top part: yellow.
Coating of the enclosure: painted.
Circuit principle: Jump function.
Material of the contact: Silver.
Number of switching contacts safety-related: 2.
Cable entry type: 2x M20 x 1,5.
Fastening method: screw fixing.
Height: 171 mm.
Width: 52 mm.
Depth: 54 mm.
Type of electrical connection: screw terminal.
