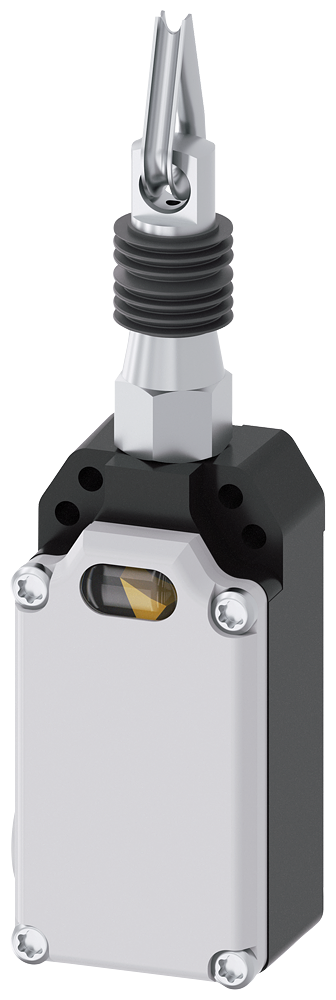

SIRIUS cable-operated switch metal enclosure, 2 x M20 x 1.5; 1 NO+1 NC
SKU: 3SE7150-2DD00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SIRIUS cable-operated switch features a metal housing, 2 x M20 x 1.5, 1 NO + 1 NC, no latching rope failure, and Bowden wire function for wire lengths up to 20m.
SIRIUS 3SE7 is used for monitoring or EMERGENCY STOP devices on system components that are highly hazardous, such as conveyor belts.
Cable-operated switches can be used to implement control functions and EMERGENCY STOP for any demand or routing path.
The devices are simple to unlock and feature integrated EMERGENCY STOP buttons as well as an LED signal display that can be seen from a long distance.
The switches are suitable for applications with the highest safety criteria required by PL e or SIL 3.
They are available in a variety of wire lengths, switching element combinations, LED displays, and emergency stop mushroom pushbuttons.
Versions with latching come with pressure, key, or rotate-to-unlatch methods.
Accessories include steel cables with red plastic sheathing in a variety of lengths, as well as related mounting accessories.
Safety is a SIRIUS company.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS.
Product designation: Cable-operated switch.
Product type designation: 3SE7.
Product Emergency stop function: no.
Product component light source: no.
Insulation voltage rated value: 400V.
Degree of pollution: class 3.
Surge voltage resistance rated value: 6kV.
Thermal current: 6A.
Continuous current of the DIAZED fuse link gG: 6A.
Type of electrical connection: Screw terminal.
Ambient Conditions:
Ambient temperature during operation: -25 to +70°C.
Number of NC contacts for auxiliary contacts: 1.
Number of NO contacts for auxiliary contacts: 1.
Operational current at AC-15:
At 240V rated value: 6A.
At 400V rated value: 6A.
Operational current at DC-13:
At 24V rated value: 3A.
At 250V rated value: 0.27A.
Enclosure:
Material of the enclosure: Metal.
Material of the enclosure cover: plastic.
Product component emergency stop device: no.
Colour:
Of the enclosure: Black.
Of the enclosure top part: Grey.
Coating of the enclosure: Painted.
Display:
Product function status display: yes.
Circuit principle: Jump function.
Material of the contact: Silver.
Number of switching contacts safety-related: 1.
Cable entry type: 2x M20 x 1.5.
Installation/mounting/dimensions:
Fastening method: Screw fixing.
Height: 171 mm.
Width: 52 mm.
Depth: 42.5 mm.
