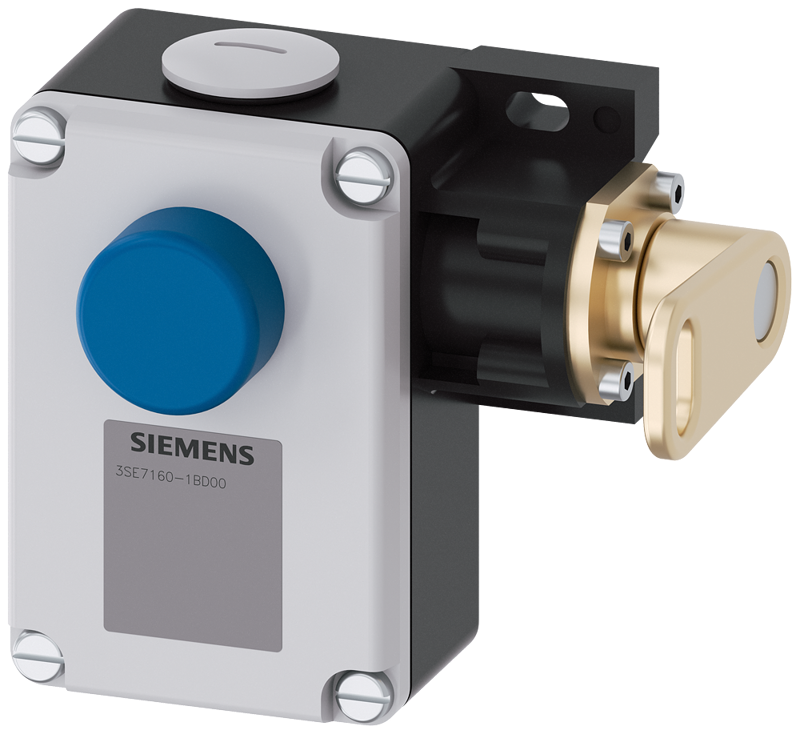

SIRIUS cable-operated switch+lever metal enclosure
SKU: 3SE7160-1BD00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Cable-operated switch and lever.
Metal enclosure, 2 x M25 x 1.5; 1 NO+1 NC, latching EN ISO 13850 with pushbutton release, 2-sided operation, wire lengths up to 2 x 100 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
EMERGENCY STOP function.
Insulation voltage rated value: 400 V.
Surge voltage resistance rated value: 6 kV.
Protection class IP: IP65.
Thermal current: 6 A.
Substance Pro habitancy (Date): 07/01/2006.
Ambient temperature during operation: -25 ... +70 °C.
Number of NC contacts for auxiliary contacts: 1.
Number of NO contacts for auxiliary contacts: 1.
Operational current at AC-15:
At 240 V rated value: 6 A.
At 400 V rated value: 6 A.
Operational current at DC-13:
At 24 V rated value: 3 A.
At 250 V rated value: 0.27 A.
Material of the enclosure: metal.
Material of the enclosure cover: Plastic.
Colour:
Of the enclosure: black.
Of the enclosure top part: grey.
Coating of the enclosure: painted.
Circuit principle: Jump function.
Material of the contact: Silver.
Number of switching contacts safety-related: 1.
Cable entry type: 2x M25 x 1,5.
Fastening method: screw fixing.
Height: 105 mm.
Width: 131 mm.
Depth: 75 mm.
Type of electrical connection: screw terminal.
