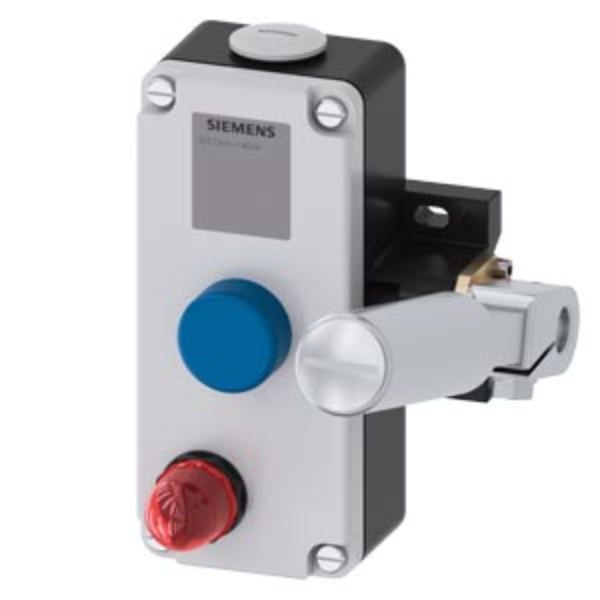

Conveyor belt unbalance tracker Metal enclosure, 2 x M25 x 1.5 2 NO+2 NC
SKU: 3SE7310-1AE04
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Unbalanced conveyor belt tracker Metal enclosure, 2 x M25 x 1.5 2 NO+2 NC, with lock. EN ISO 13850 specifies a pushbutton release with a 24 V DC LED bulb in red.
SIRIUS 3SE7 red cable-operated switch for monitoring or EMERGENCY STOP devices on system components that are highly hazardous, such as conveyor belts.
Cable-operated switches can be used to implement control functions and EMERGENCY STOP for any demand or routing path.
The devices are simple to unlock and feature integrated EMERGENCY STOP buttons as well as an LED signal display that can be seen from a long distance.
The switches are suitable for applications with the highest safety criteria required by PL e or SIL 3.
They are available in a variety of wire lengths, switching element combinations, LED displays, and EMERGENCY STOP mushroom pushbuttons.
Versions with latching come with pressure, key, or rotate-to-unlatch methods.
Accessories include steel cables with red plastic sheathing in a variety of lengths, as well as related mounting accessories.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Brand name: SIRIUS.
Product designation: Conveyer belt unbalance device.
Product type designation: 3SE7.
Product component light source: Yes.
Insulation voltage rated value: 400V.
Terminal current: 6A.
Ambient Temperature during operation: -25 - +70°C.
Number of NC contacts for auxiliary contacts: 2.
Number of NO contacts for auxiliary contacts: 2.
Operational current at AC – 15:
At 240V rated value: 6A.
At 400V rated value: 6A.
Operational current at DC – 13:
At 240V rated value: 3A.
At 400V rated value: 0.27A.
Enclosure:
Material of enclosure: Metal.
Material of the enclosure cover: Metal.
Colour:
Of the enclosure: Black.
Of the enclosure top part: Grey.
Coating of enclosure: Painted.
Display:
Product function status display: no.
Lamp:
Colour of the light source: Red.
Circuit principal: Jump function.
Material of the contact: Silver.
Number of switching contacts safety-related: 2.
Cable entry type: 2 x M25 x 1.5.
Installation/Mounting/Dimensions:
Fastening method: Screw fixing.
Height: 160 mm.
Width: 135 mm.
Depth: 206 mm.
Connections/Terminals:
Type of electrical connection: Screw terminal.
Supply voltage:
Type of voltage of the light source: DC.
Supply voltage 1 of the light source at DC rated value: 24V.
