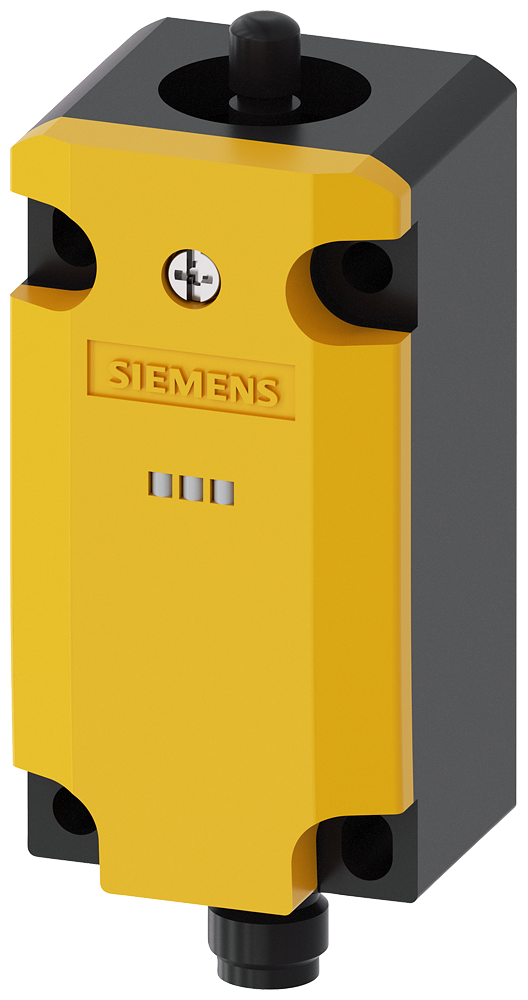

      Basic switch without actuator head metal encl., EN50041 ASIsafe integrated

      SKU: 3SF1114-1KA00-1BA1

      Out of stock

      Availability: Out of Stock

      Short Description
      Basic switch: Without actuator head Metal enclosure According to EN 50041 ASIsafe integrated AS-i status: 1:F-IN1 2: F-IN2 3:AS-i/FAULT Slow-action contacts 2 NC with M12 connector 4-pole Channel 1 to NC Channel 2 to NC Mechanical safety switches SIRIUS 3SF11 for position monitoring of movable protective devices with direct connection to the AS-interface bus system.
      3SF1114-1KA00-1BA1
      Alternative image 1
      #html-body [data-pb-style=HAPJGQE]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}Description:•Thanks to their integrated ASIsafe electronics, which require only minimal current, the mechanical safety switches have a compact design. •3D-coded actuators guarantee strong protection against manipulation. •Two LEDs indicate the current state of the device. •The switches can be used for the highest safety requirements specified by PL e or SIL 3. •Device versions are also available with a high IP69K degree of protection.•Various enclosure sizes are available in plastic or metal. •In addition, versions are available with separate actuator with tumbler, or as a safety hinge switch. •The portfolio is completed by a series of devices with IP69K degree of protection.•Depending on the design, actuator heads, separate actuators, plug-in connectors and other mounting/connection accessories are available.•Safety is a SIRIUS business.
