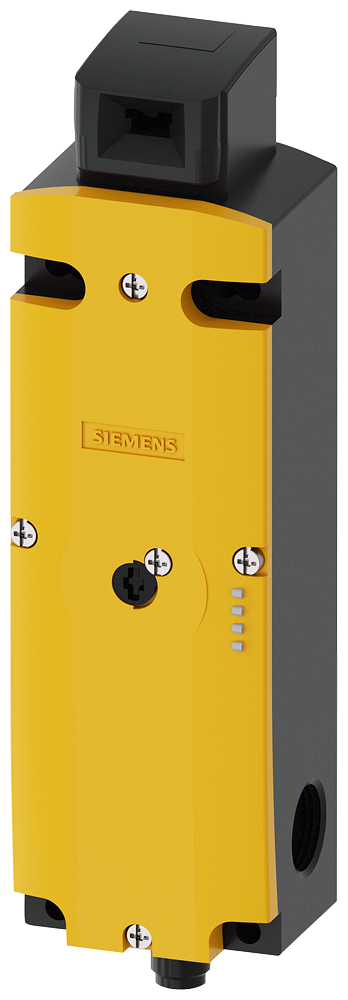

Safety position switch with tumbler, 3SF1324-1SD21-1BK4
SKU: 3SF1324-1SD21-1BK4
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Safety position switch with tumbler locking force 1300 N
5 approach directions plastic enclosure
M12 plug ASIsafe integrated high degree of protection IP69, IEC 60529
Channel 1=actuator 2 NC according to principle of 2v2 evaluation
Channel 2=magnet 1 NC spring-locked auxiliary release on front magnet voltage 24 V AC/DC
Monitoring actuator 2 NC/1 NO
Monitoring magnet 2 NC/1 NO
The matching separate actuator 3SE5000-0AV0 must be ordered separately
Mechanical safety switches SIRIUS 3SF13 for position monitoring of movable protective devices with direct connection to the AS-interface bus system.
Buy currently uses Select Automation shop pricing and checkout.
#html-body [data-pb-style=Y4C4JX4]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}Description:•Thanks to their integrated ASIsafe electronics, which require only minimal current, the mechanical safety switches have a compact design. •3D-coded actuators guarantee strong protection against manipulation. •Two LEDs indicate the current state of the device. •The switches can be used for the highest safety requirements specified by PL e or SIL 3. •Device versions are also available with a high IP69K degree of protection.•Various enclosure sizes are available in plastic or metal. •In addition, versions are available with separate actuator with tumbler, or as a safety hinge switch. •The portfolio is completed by a series of devices with IP69K degree of protection.•Depending on the design, actuator heads, separate actuators, plug-in connectors and other mounting/connection accessories are available.•Safety is a SIRIUS business.
