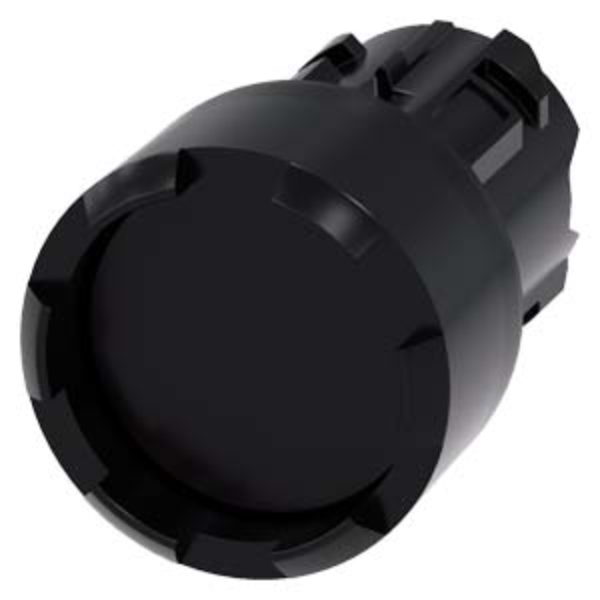

Pushbutton, 22 mm, round, plastic, black, Front ring, raised, castellated momentary contact type
SKU: 3SU1000-0DB10-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Pushbutton, 22 mm, round, plastic, black, Front ring, raised, castellated momentary contact type.
SIRIUS ACT features illuminated pushbuttons for switching and managing electrical loads.
Siemens' SIRIUS ACT brand offers a unique selection of pushbuttons and signalling devices with global product certifications in three modern design lines made of durable real metal and high-grade plastic.
A revolutionary Snap-on approach simplifies the work of installing a unit, allowing it to be completed with one hand and no additional tools.
Due to the built-in full twist protection, groove-free holes are acceptable for mounting.
Because of the high level of protection throughout, the rugged devices are suited for use in industry and outdoors.
It is feasible to clean with a high-pressure jet. Dust, oils, and caustic solutions cannot interfere with reliable performance.
In addition to traditional wire, the devices can connect to the controller via PROFINET, AS-Interface, or IO-Link.
This will allow you to cut wiring time and effort, limit mistake causes and gain more flexibility.
The graphical Online Configurator makes it easy to pick and order specific devices, enclosures, and labels.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS ACT.
Product designation: Pushbuttons.
Design of the product: Actuating/Signalling element.
Product type designation: 3SU1.
Product line: Plastic, black, 22 mm.
Number of command points: 1.
Protection class: IP66, IP67, IP69 (IP69K).
Actuator:
Design of the actuating element: flat button.
Principal of operation of the actuating element: momentary contact type.
Colour of the actuating element: black.
Material of the actuating element: Plastic.
Shape of the actuating element: Round.
Outer diameter of the actuating element: 29.5 mm.
Front ring:
Product component front ring: Yes.
Design of the front ring: high.
Material of the front ring: Plastic.
Colour of the front ring: Black.
Ambient temperature:
During operation: -25 - +70°C.
During storage: -40 - +80°C.
Installation/Mounting/Dimensions:
Height: 29.5 mm.
Width: 29.5 mm.
Shape of the installation opening: Round.
Mounting diameter: 22.3 mm.
Mounting height: 18.1 mm.
Installation width: 29.5 mm.
Installation depth: 24.3 mm.
