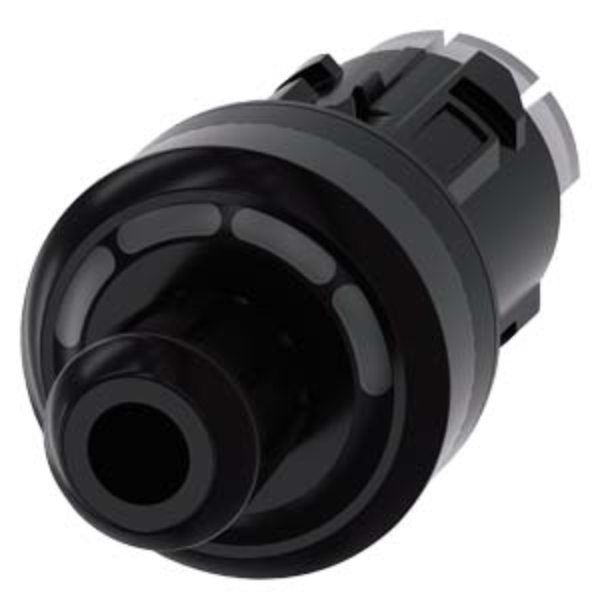

ID-key-operated switch, 22 mm, round, plastic, black, RFID
SKU: 3SU1000-4WS10-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The switch operates with an ID key and is 22 mm in diameter, round, made of plastic, black, and equipped with RFID technology.
It has four switch positions, O-I, II-III, and operates at an angle of 3x45°.
It does not require an ID key and allows for key removal in O+I+II+III.
SIRIUS ACT offers enhanced access security with up to four authorization levels and coded ID keys for authentication.
Please order the holder (plastic), identification key, and electrical module separately.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Brand name: SIRIUS ACT.
Product designation: ID key-operated switches.
Design of the product: Actuating/Signalling element.
Product type designation: 3SU1.
Product line: Plastic, Black, 22 mm.
Protection class: IP65.
Actuator:
Principal of operation of the actuating element: Latching.
Colour of the actuating element: black.
Material of the actuating element: Plastic.
Shape of the actuating element: Round.
Outer diameter of the actuating element: 29.5 mm.
Number of switching positions: 4.
Switch position for key distraction: key removal possible in all 4 positions.
Front ring:
Product component front ring: Yes.
Design of the front ring: Standard.
Material of the front ring: Plastic.
Colour of the front ring: Black.
Ambient Temperature:
During operation: -25 - +70°C.
During storage: -40 - +80°C.
Installation/Mounting/Dimensions:
Height: 29.5 mm.
Width: 29.5 mm.
Mounting diameter: 22.3 mm.
Mounting height: 29.6 mm.
Installation width: 29.5 mm.
Installation depth: 29.5 mm.
